Model Selection - Please click
| Product picture | Product category | Series | SIZE(mm*mm*mm) | Inductance | DCR | lsat | lrmt | temperature | Specifications |
|---|---|---|---|---|---|---|---|---|---|

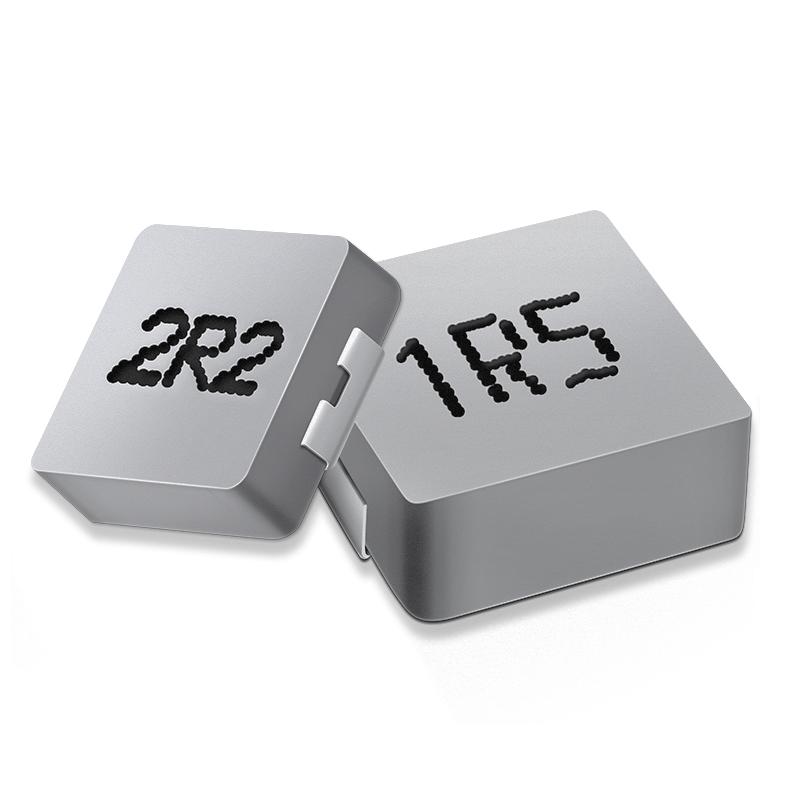

 | Automotive Grade molded SMD power inductor | FAUL0412 | 4.4*4.2*1.0 | 0.15uH-4.7uH | 9mΩ-195mΩ | 1.8A-15A | 1.45A-7.5A | - 55 °C + 155 °C | FAUL系列规格书.pdf |
| FAUL0420 | 4.4*4.2*1.8 | 0.10uH-22uH | 4mΩ-363mΩ | 1.12A-22A | 0.9A-13A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0518 | 5.4*5.2*1.6 | 0.47uH-10uH | 9mΩ-155mΩ | 2.0A-12A | 2.2A-10.5A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0530 | 5.4*5.2*2.8 | 0.10uH-15uH | 3mΩ-170mΩ | 2.0A-30A | 1.6A-25A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0618 | 7.0*6.6*1.6 | 0.10uH-22uH | 2.3mΩ-350mΩ | 1.84A-38A | 1.4A-25A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0620 | 7.0*6.6*1.8 | 1.5uH-210uH | 18mΩ-145mΩ | 4.0A-12A | 1.8A-8A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0624 | 7.0*6.6*2.2 | 0.22uH-22uH | 3mΩ-230mΩ | 2.0A-30A | 1.6A-21A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0630 | 7.0*6.6*2.8 | 0.22uH-47uH | 3mΩ-380mΩ | 1.6A-34A | 1.2A-24A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0640 | 7.0*6.6*3.8 | 0.68uH-47uH | 4.8mΩ-320mΩ | 2A-19A | 1.5A-17A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0650 | 7.0*6.6*4.8 | 0.47uH-47uH | 3.9mΩ-230mΩ | 2.08A-21A | 1.5A-20A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0754 | 7.9*7.2*5.2 | 1.5uH-100uH | 7.3mΩ-348mΩ | 2.0A-16.3A | 1.6A-11.4A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1030 | 11.5*10.0*2.8 | 0.22uH-33uH | 1.2mΩ-160mΩ | 3.53A-50A | 2.3A-33A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1040 | 11*10.0*3.8 | 0.15uH-100uH | 0.65mΩ-340mΩ | 2.1A-75A | 1.8A-45A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1050 | 11*10.0*4.8 | 0.22uH-100uH | 0.8mΩ-290mΩ | 2.5A-65A | 1.8A-37A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1340 | 13.45*12.8*4.0 | 0.22uH-22uH | 0.9mΩ-51mΩ | 4.8A-50A | 3.8A-42A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1350 | 13.45*12.6*4.8 | 0.22uH-47uH | 0.7mΩ-130mΩ | 4.0A-75A | 2.6A-50A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1360 | 13.45*12.6*5.8 | 1.5uH-150uH | 2.9mΩ-350mΩ | 2.16A-30A | 1.2A-27A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1365 | 13.45*12.6*6.5 | 4.7uH-100uH | 8.5mΩ-170mΩ | 4A-24A | 3.5A-16A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1770 | 17.15*17.15*7.0 | 2.2uH-100uH | 2.5mΩ-130mΩ | 5A-34A | 3.7A-29A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
 | Automotive Grade molded SMD power inductor | FEXL0420A | 4.1*4.1*1.9 | 0.1uH-2.4uH | 6mΩ-38.7mΩ | 6A-33A | 4.6A-13.5A | - 55 °C + 125 °C | FEXL0420A.pdf |
| FEXL0430A | 4.1*4.1*2.8 | 0.47uH-6.8uH | 7.26mΩ-74.1mΩ | 3A-15A | 3A-10A | - 55 °C + 125 °C | FEXL0430A.pdf | ||
| FEXL0520A | 5.5*5.3*1.9 | 0.15uH-1.5uH | 4.6mΩ-18.7mΩ | 11.7A-27A | 6.4A-13.9A | - 55 °C + 125 °C | FEXL0520A.pdf | ||
| FEXL0530A | 5.5*5.3*2.9 | 0.15uH-4.7uH | 2.31mΩ-36.3mΩ | 7A-32.5A | 4.3A-14.3A | - 55 °C + 125 °C | FEXL0530A.pdf | ||
| FEXL0550A | 5.5*5.3*4.8 | 5.6uH-22uH | 24.2mΩ-99.65mΩ | 3A-7.2A | 2.5A-5.3A | - 55 °C + 125 °C | FEXL0550A.pdf | ||
| FEXL0630A | 6.6*6.4*2.9 | 0.18uH-4.5uH | 1.75mΩ-25.3mΩ | 8A-36A | 5A-24A | - 55 °C + 125 °C | FEXL0630A.pdf | ||
| FEXL0650A | 6.6*6.4*4.8 | 0.82uH-4.7uH | 4.18mΩ-18.4mΩ | 8A-20A | 6.5A-16A | - 55 °C + 125 °C | FEXL0650A.pdf | ||
| FEXL0660A | 6.6*6.4*5.8 | 1uH-22uH | 4.4mΩ-60.63mΩ | 4.8A-19A | 3.8A-16A | - 55 °C + 125 °C | FEXL0660A.pdf | ||
| FEXL0720A | 7.8*7.6*1.85 | 0.27uH-1uH | 3.5mΩ-10.8mΩ | 20A-32A | 8A-16A | - 55 °C + 125 °C | FEXL0720A.pdf | ||
| FEXL0730A | 7.8*7.6*2.9 | 1uH-8.2uH | 5mΩ-48.73mΩ | 9A-28A | 3A-16.1A | - 55 °C + 125 °C | FEXL0730A.pdf | ||
| FEXL0770A | 7.8*7.6*6.7 | 3.3uH-6.8uH | 9.42mΩ-19.6mΩ | 11A-15.1A | 7A-11.5A | - 55 °C + 125 °C | FEXL0770A.pdf | ||
| FEXL0880A | 8.9*8.5*7.7 | 1.8uH-10uH | 4mΩ-22.9mΩ | 10A-24A | 6.6A-18A | - 55 °C + 125 °C | FEXL0880A.pdf | ||
| FEXL1031A | 11.9*11.0*2.9 | 0.28uH-1.5uH | 1.6mΩ-6.6mΩ | 25A-58A | 12A-25.5A | - 55 °C + 125 °C | FEXL1031A.pdf | ||
| FEXL1060A | 11.9*11.0*5.7 | 0.68uH-4.7uH | 1.5mΩ-10.72mΩ | 22A-50A | 8.7A-22.5A | - 55 °C + 125 °C | FEXL1060A.pdf | ||
| FEXL1010A | 11.9*11.0*9.7 | 2.2uH-15uH | 2.8mΩ-19.3mΩ | 12.5A-29A | 9.9A-24.5A | - 55 °C + 125 °C | FEXL1010A.pdf | ||
| FEXL1580A | 16.5*15.5*7.7 | 2uH-8.2uH | 2.21mΩ-7.92mΩ | 25A-52A | 13A-29.5A | - 55 °C + 125 °C | FEXL1580A.pdf | ||
| FEXL1510A | 16.5*15.5*9.7 | 4.7uH-10uH | 3.8mΩ-8.6mΩ | 26A-39A | 18A-22A | - 55 °C + 125 °C | FEXL1510A.pdf | ||
| FEXL1513A | 16.5*15.5*12.7 | 4.7uH-33uH | 3.3mΩ-22.2mΩ | 16A-40A | 9A-23A | - 55 °C + 125 °C | FEXL1513A.pdf | ||
 | Automotive Grade molded SMD power inductor | FAU0420 | 4.4*4.2*1.8 | 0.1uH-10uH | 3.1mΩ-282mΩ | 2.0A-22A | 1.5A-15A | - 55 °C + 155 °C | FAU0420.pdf |
| FAU0530 | 5.4*5.2*2.8 | 0.47uH-10uH | 5.3mΩ-103.5mΩ | 2.6A-13.0A | 2.5A-11A | - 55 °C + 155 °C | FAU0530.pdf | ||
| FAU0630 | 7.0*6.6*2.8 | 0.1uH-33uH | 0.63mΩ-230mΩ | 2.8A-70A | 2.1A-33A | - 55 °C + 155 °C | FAU0630.pdf | ||
| FAU1054 | 11.5*10.0*5.2 | 4.7uH-47uH | 8.3mΩ-103mΩ | 4.2A-13.5A | 3.6A-13A | - 55 °C + 155 °C | FAU1054.pdf | ||
| FAU1350 | 13.45*12.6*4.8 | 0.1uH-33uH | 0.33mΩ-57.5mΩ | 7.5A-100A | 5.5A-54A | - 55 °C + 155 °C | FAU1350.pdf |
Automotive Grade Inductor
| Product picture | Product category | Series | SIZE(mm*mm*mm) | Inductance | DCR | lsat | lrmt | temperature | Specifications |
|---|---|---|---|---|---|---|---|---|---|
| Automotive Grade molded SMD power inductor | FAUL0412 | 4.4*4.2*1.0 | 0.15uH-4.7uH | 9mΩ-195mΩ | 1.8A-15A | 1.45A-7.5A | - 55 °C + 155 °C | FAUL系列规格书.pdf |
| FAUL0420 | 4.4*4.2*1.8 | 0.10uH-22uH | 4mΩ-363mΩ | 1.12A-22A | 0.9A-13A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0518 | 5.4*5.2*1.6 | 0.47uH-10uH | 9mΩ-155mΩ | 2.0A-12A | 2.2A-10.5A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0530 | 5.4*5.2*2.8 | 0.10uH-15uH | 3mΩ-170mΩ | 2.0A-30A | 1.6A-25A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0618 | 7.0*6.6*1.6 | 0.10uH-22uH | 2.3mΩ-350mΩ | 1.84A-38A | 1.4A-25A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0620 | 7.0*6.6*1.8 | 1.5uH-210uH | 18mΩ-145mΩ | 4.0A-12A | 1.8A-8A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0624 | 7.0*6.6*2.2 | 0.22uH-22uH | 3mΩ-230mΩ | 2.0A-30A | 1.6A-21A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0630 | 7.0*6.6*2.8 | 0.22uH-47uH | 3mΩ-380mΩ | 1.6A-34A | 1.2A-24A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0640 | 7.0*6.6*3.8 | 0.68uH-47uH | 4.8mΩ-320mΩ | 2A-19A | 1.5A-17A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0650 | 7.0*6.6*4.8 | 0.47uH-47uH | 3.9mΩ-230mΩ | 2.08A-21A | 1.5A-20A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0754 | 7.9*7.2*5.2 | 1.5uH-100uH | 7.3mΩ-348mΩ | 2.0A-16.3A | 1.6A-11.4A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1030 | 11.5*10.0*2.8 | 0.22uH-33uH | 1.2mΩ-160mΩ | 3.53A-50A | 2.3A-33A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1040 | 11*10.0*3.8 | 0.15uH-100uH | 0.65mΩ-340mΩ | 2.1A-75A | 1.8A-45A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1050 | 11*10.0*4.8 | 0.22uH-100uH | 0.8mΩ-290mΩ | 2.5A-65A | 1.8A-37A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1340 | 13.45*12.8*4.0 | 0.22uH-22uH | 0.9mΩ-51mΩ | 4.8A-50A | 3.8A-42A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1350 | 13.45*12.6*4.8 | 0.22uH-47uH | 0.7mΩ-130mΩ | 4.0A-75A | 2.6A-50A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1360 | 13.45*12.6*5.8 | 1.5uH-150uH | 2.9mΩ-350mΩ | 2.16A-30A | 1.2A-27A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1365 | 13.45*12.6*6.5 | 4.7uH-100uH | 8.5mΩ-170mΩ | 4A-24A | 3.5A-16A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1770 | 17.15*17.15*7.0 | 2.2uH-100uH | 2.5mΩ-130mΩ | 5A-34A | 3.7A-29A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| Automotive Grade molded SMD power inductor | FEXL0420A | 4.1*4.1*1.9 | 0.1uH-2.4uH | 6mΩ-38.7mΩ | 6A-33A | 4.6A-13.5A | - 55 °C + 125 °C | FEXL0420A.pdf |
| FEXL0430A | 4.1*4.1*2.8 | 0.47uH-6.8uH | 7.26mΩ-74.1mΩ | 3A-15A | 3A-10A | - 55 °C + 125 °C | FEXL0430A.pdf | ||
| FEXL0520A | 5.5*5.3*1.9 | 0.15uH-1.5uH | 4.6mΩ-18.7mΩ | 11.7A-27A | 6.4A-13.9A | - 55 °C + 125 °C | FEXL0520A.pdf | ||
| FEXL0530A | 5.5*5.3*2.9 | 0.15uH-4.7uH | 2.31mΩ-36.3mΩ | 7A-32.5A | 4.3A-14.3A | - 55 °C + 125 °C | FEXL0530A.pdf | ||
| FEXL0550A | 5.5*5.3*4.8 | 5.6uH-22uH | 24.2mΩ-99.65mΩ | 3A-7.2A | 2.5A-5.3A | - 55 °C + 125 °C | FEXL0550A.pdf | ||
| FEXL0630A | 6.6*6.4*2.9 | 0.18uH-4.5uH | 1.75mΩ-25.3mΩ | 8A-36A | 5A-24A | - 55 °C + 125 °C | FEXL0630A.pdf | ||
| FEXL0650A | 6.6*6.4*4.8 | 0.82uH-4.7uH | 4.18mΩ-18.4mΩ | 8A-20A | 6.5A-16A | - 55 °C + 125 °C | FEXL0650A.pdf | ||
| FEXL0660A | 6.6*6.4*5.8 | 1uH-22uH | 4.4mΩ-60.63mΩ | 4.8A-19A | 3.8A-16A | - 55 °C + 125 °C | FEXL0660A.pdf | ||
| FEXL0720A | 7.8*7.6*1.85 | 0.27uH-1uH | 3.5mΩ-10.8mΩ | 20A-32A | 8A-16A | - 55 °C + 125 °C | FEXL0720A.pdf | ||
| FEXL0730A | 7.8*7.6*2.9 | 1uH-8.2uH | 5mΩ-48.73mΩ | 9A-28A | 3A-16.1A | - 55 °C + 125 °C | FEXL0730A.pdf | ||
| FEXL0770A | 7.8*7.6*6.7 | 3.3uH-6.8uH | 9.42mΩ-19.6mΩ | 11A-15.1A | 7A-11.5A | - 55 °C + 125 °C | FEXL0770A.pdf | ||
| FEXL0880A | 8.9*8.5*7.7 | 1.8uH-10uH | 4mΩ-22.9mΩ | 10A-24A | 6.6A-18A | - 55 °C + 125 °C | FEXL0880A.pdf | ||
| FEXL1031A | 11.9*11.0*2.9 | 0.28uH-1.5uH | 1.6mΩ-6.6mΩ | 25A-58A | 12A-25.5A | - 55 °C + 125 °C | FEXL1031A.pdf | ||
| FEXL1060A | 11.9*11.0*5.7 | 0.68uH-4.7uH | 1.5mΩ-10.72mΩ | 22A-50A | 8.7A-22.5A | - 55 °C + 125 °C | FEXL1060A.pdf | ||
| FEXL1010A | 11.9*11.0*9.7 | 2.2uH-15uH | 2.8mΩ-19.3mΩ | 12.5A-29A | 9.9A-24.5A | - 55 °C + 125 °C | FEXL1010A.pdf | ||
| FEXL1580A | 16.5*15.5*7.7 | 2uH-8.2uH | 2.21mΩ-7.92mΩ | 25A-52A | 13A-29.5A | - 55 °C + 125 °C | FEXL1580A.pdf | ||
| FEXL1510A | 16.5*15.5*9.7 | 4.7uH-10uH | 3.8mΩ-8.6mΩ | 26A-39A | 18A-22A | - 55 °C + 125 °C | FEXL1510A.pdf | ||
| FEXL1513A | 16.5*15.5*12.7 | 4.7uH-33uH | 3.3mΩ-22.2mΩ | 16A-40A | 9A-23A | - 55 °C + 125 °C | FEXL1513A.pdf | ||
| Automotive Grade molded SMD power inductor | FAU0420 | 4.4*4.2*1.8 | 0.1uH-10uH | 3.1mΩ-282mΩ | 2.0A-22A | 1.5A-15A | - 55 °C + 155 °C | FAU0420.pdf |
| FAU0530 | 5.4*5.2*2.8 | 0.47uH-10uH | 5.3mΩ-103.5mΩ | 2.6A-13.0A | 2.5A-11A | - 55 °C + 155 °C | FAU0530.pdf | ||
| FAU0630 | 7.0*6.6*2.8 | 0.1uH-33uH | 0.63mΩ-230mΩ | 2.8A-70A | 2.1A-33A | - 55 °C + 155 °C | FAU0630.pdf | ||
| FAU1054 | 11.5*10.0*5.2 | 4.7uH-47uH | 8.3mΩ-103mΩ | 4.2A-13.5A | 3.6A-13A | - 55 °C + 155 °C | FAU1054.pdf | ||
| FAU1350 | 13.45*12.6*4.8 | 0.1uH-33uH | 0.33mΩ-57.5mΩ | 7.5A-100A | 5.5A-54A | - 55 °C + 155 °C | FAU1350.pdf |
Automotive Coupled Inductor
| Product picture | Product category | Series | SIZE(mm*mm*mm) | Inductance | DCR | lsat | lrmt | temperature | Specifications |
|---|---|---|---|---|---|---|---|---|---|
| Automotive Grade molded SMD power inductor | FAUL0412 | 4.4*4.2*1.0 | 0.15uH-4.7uH | 9mΩ-195mΩ | 1.8A-15A | 1.45A-7.5A | - 55 °C + 155 °C | FAUL系列规格书.pdf |
| FAUL0420 | 4.4*4.2*1.8 | 0.10uH-22uH | 4mΩ-363mΩ | 1.12A-22A | 0.9A-13A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0518 | 5.4*5.2*1.6 | 0.47uH-10uH | 9mΩ-155mΩ | 2.0A-12A | 2.2A-10.5A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0530 | 5.4*5.2*2.8 | 0.10uH-15uH | 3mΩ-170mΩ | 2.0A-30A | 1.6A-25A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0618 | 7.0*6.6*1.6 | 0.10uH-22uH | 2.3mΩ-350mΩ | 1.84A-38A | 1.4A-25A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0620 | 7.0*6.6*1.8 | 1.5uH-210uH | 18mΩ-145mΩ | 4.0A-12A | 1.8A-8A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0624 | 7.0*6.6*2.2 | 0.22uH-22uH | 3mΩ-230mΩ | 2.0A-30A | 1.6A-21A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0630 | 7.0*6.6*2.8 | 0.22uH-47uH | 3mΩ-380mΩ | 1.6A-34A | 1.2A-24A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0640 | 7.0*6.6*3.8 | 0.68uH-47uH | 4.8mΩ-320mΩ | 2A-19A | 1.5A-17A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0650 | 7.0*6.6*4.8 | 0.47uH-47uH | 3.9mΩ-230mΩ | 2.08A-21A | 1.5A-20A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0754 | 7.9*7.2*5.2 | 1.5uH-100uH | 7.3mΩ-348mΩ | 2.0A-16.3A | 1.6A-11.4A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1030 | 11.5*10.0*2.8 | 0.22uH-33uH | 1.2mΩ-160mΩ | 3.53A-50A | 2.3A-33A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1040 | 11*10.0*3.8 | 0.15uH-100uH | 0.65mΩ-340mΩ | 2.1A-75A | 1.8A-45A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1050 | 11*10.0*4.8 | 0.22uH-100uH | 0.8mΩ-290mΩ | 2.5A-65A | 1.8A-37A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1340 | 13.45*12.8*4.0 | 0.22uH-22uH | 0.9mΩ-51mΩ | 4.8A-50A | 3.8A-42A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1350 | 13.45*12.6*4.8 | 0.22uH-47uH | 0.7mΩ-130mΩ | 4.0A-75A | 2.6A-50A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1360 | 13.45*12.6*5.8 | 1.5uH-150uH | 2.9mΩ-350mΩ | 2.16A-30A | 1.2A-27A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1365 | 13.45*12.6*6.5 | 4.7uH-100uH | 8.5mΩ-170mΩ | 4A-24A | 3.5A-16A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1770 | 17.15*17.15*7.0 | 2.2uH-100uH | 2.5mΩ-130mΩ | 5A-34A | 3.7A-29A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| Automotive Grade molded SMD power inductor | FEXL0420A | 4.1*4.1*1.9 | 0.1uH-2.4uH | 6mΩ-38.7mΩ | 6A-33A | 4.6A-13.5A | - 55 °C + 125 °C | FEXL0420A.pdf |
| FEXL0430A | 4.1*4.1*2.8 | 0.47uH-6.8uH | 7.26mΩ-74.1mΩ | 3A-15A | 3A-10A | - 55 °C + 125 °C | FEXL0430A.pdf | ||
| FEXL0520A | 5.5*5.3*1.9 | 0.15uH-1.5uH | 4.6mΩ-18.7mΩ | 11.7A-27A | 6.4A-13.9A | - 55 °C + 125 °C | FEXL0520A.pdf | ||
| FEXL0530A | 5.5*5.3*2.9 | 0.15uH-4.7uH | 2.31mΩ-36.3mΩ | 7A-32.5A | 4.3A-14.3A | - 55 °C + 125 °C | FEXL0530A.pdf | ||
| FEXL0550A | 5.5*5.3*4.8 | 5.6uH-22uH | 24.2mΩ-99.65mΩ | 3A-7.2A | 2.5A-5.3A | - 55 °C + 125 °C | FEXL0550A.pdf | ||
| FEXL0630A | 6.6*6.4*2.9 | 0.18uH-4.5uH | 1.75mΩ-25.3mΩ | 8A-36A | 5A-24A | - 55 °C + 125 °C | FEXL0630A.pdf | ||
| FEXL0650A | 6.6*6.4*4.8 | 0.82uH-4.7uH | 4.18mΩ-18.4mΩ | 8A-20A | 6.5A-16A | - 55 °C + 125 °C | FEXL0650A.pdf | ||
| FEXL0660A | 6.6*6.4*5.8 | 1uH-22uH | 4.4mΩ-60.63mΩ | 4.8A-19A | 3.8A-16A | - 55 °C + 125 °C | FEXL0660A.pdf | ||
| FEXL0720A | 7.8*7.6*1.85 | 0.27uH-1uH | 3.5mΩ-10.8mΩ | 20A-32A | 8A-16A | - 55 °C + 125 °C | FEXL0720A.pdf | ||
| FEXL0730A | 7.8*7.6*2.9 | 1uH-8.2uH | 5mΩ-48.73mΩ | 9A-28A | 3A-16.1A | - 55 °C + 125 °C | FEXL0730A.pdf | ||
| FEXL0770A | 7.8*7.6*6.7 | 3.3uH-6.8uH | 9.42mΩ-19.6mΩ | 11A-15.1A | 7A-11.5A | - 55 °C + 125 °C | FEXL0770A.pdf | ||
| FEXL0880A | 8.9*8.5*7.7 | 1.8uH-10uH | 4mΩ-22.9mΩ | 10A-24A | 6.6A-18A | - 55 °C + 125 °C | FEXL0880A.pdf | ||
| FEXL1031A | 11.9*11.0*2.9 | 0.28uH-1.5uH | 1.6mΩ-6.6mΩ | 25A-58A | 12A-25.5A | - 55 °C + 125 °C | FEXL1031A.pdf | ||
| FEXL1060A | 11.9*11.0*5.7 | 0.68uH-4.7uH | 1.5mΩ-10.72mΩ | 22A-50A | 8.7A-22.5A | - 55 °C + 125 °C | FEXL1060A.pdf | ||
| FEXL1010A | 11.9*11.0*9.7 | 2.2uH-15uH | 2.8mΩ-19.3mΩ | 12.5A-29A | 9.9A-24.5A | - 55 °C + 125 °C | FEXL1010A.pdf | ||
| FEXL1580A | 16.5*15.5*7.7 | 2uH-8.2uH | 2.21mΩ-7.92mΩ | 25A-52A | 13A-29.5A | - 55 °C + 125 °C | FEXL1580A.pdf | ||
| FEXL1510A | 16.5*15.5*9.7 | 4.7uH-10uH | 3.8mΩ-8.6mΩ | 26A-39A | 18A-22A | - 55 °C + 125 °C | FEXL1510A.pdf | ||
| FEXL1513A | 16.5*15.5*12.7 | 4.7uH-33uH | 3.3mΩ-22.2mΩ | 16A-40A | 9A-23A | - 55 °C + 125 °C | FEXL1513A.pdf | ||
| Automotive Grade molded SMD power inductor | FAU0420 | 4.4*4.2*1.8 | 0.1uH-10uH | 3.1mΩ-282mΩ | 2.0A-22A | 1.5A-15A | - 55 °C + 155 °C | FAU0420.pdf |
| FAU0530 | 5.4*5.2*2.8 | 0.47uH-10uH | 5.3mΩ-103.5mΩ | 2.6A-13.0A | 2.5A-11A | - 55 °C + 155 °C | FAU0530.pdf | ||
| FAU0630 | 7.0*6.6*2.8 | 0.1uH-33uH | 0.63mΩ-230mΩ | 2.8A-70A | 2.1A-33A | - 55 °C + 155 °C | FAU0630.pdf | ||
| FAU1054 | 11.5*10.0*5.2 | 4.7uH-47uH | 8.3mΩ-103mΩ | 4.2A-13.5A | 3.6A-13A | - 55 °C + 155 °C | FAU1054.pdf | ||
| FAU1350 | 13.45*12.6*4.8 | 0.1uH-33uH | 0.33mΩ-57.5mΩ | 7.5A-100A | 5.5A-54A | - 55 °C + 155 °C | FAU1350.pdf |
NR Inductor
| Product picture | Product category | Series | SIZE(mm*mm*mm) | Inductance | DCR | lsat | lrmt | temperature | Specifications |
|---|---|---|---|---|---|---|---|---|---|
| Automotive Grade molded SMD power inductor | FAUL0412 | 4.4*4.2*1.0 | 0.15uH-4.7uH | 9mΩ-195mΩ | 1.8A-15A | 1.45A-7.5A | - 55 °C + 155 °C | FAUL系列规格书.pdf |
| FAUL0420 | 4.4*4.2*1.8 | 0.10uH-22uH | 4mΩ-363mΩ | 1.12A-22A | 0.9A-13A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0518 | 5.4*5.2*1.6 | 0.47uH-10uH | 9mΩ-155mΩ | 2.0A-12A | 2.2A-10.5A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0530 | 5.4*5.2*2.8 | 0.10uH-15uH | 3mΩ-170mΩ | 2.0A-30A | 1.6A-25A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0618 | 7.0*6.6*1.6 | 0.10uH-22uH | 2.3mΩ-350mΩ | 1.84A-38A | 1.4A-25A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0620 | 7.0*6.6*1.8 | 1.5uH-210uH | 18mΩ-145mΩ | 4.0A-12A | 1.8A-8A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0624 | 7.0*6.6*2.2 | 0.22uH-22uH | 3mΩ-230mΩ | 2.0A-30A | 1.6A-21A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0630 | 7.0*6.6*2.8 | 0.22uH-47uH | 3mΩ-380mΩ | 1.6A-34A | 1.2A-24A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0640 | 7.0*6.6*3.8 | 0.68uH-47uH | 4.8mΩ-320mΩ | 2A-19A | 1.5A-17A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0650 | 7.0*6.6*4.8 | 0.47uH-47uH | 3.9mΩ-230mΩ | 2.08A-21A | 1.5A-20A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0754 | 7.9*7.2*5.2 | 1.5uH-100uH | 7.3mΩ-348mΩ | 2.0A-16.3A | 1.6A-11.4A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1030 | 11.5*10.0*2.8 | 0.22uH-33uH | 1.2mΩ-160mΩ | 3.53A-50A | 2.3A-33A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1040 | 11*10.0*3.8 | 0.15uH-100uH | 0.65mΩ-340mΩ | 2.1A-75A | 1.8A-45A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1050 | 11*10.0*4.8 | 0.22uH-100uH | 0.8mΩ-290mΩ | 2.5A-65A | 1.8A-37A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1340 | 13.45*12.8*4.0 | 0.22uH-22uH | 0.9mΩ-51mΩ | 4.8A-50A | 3.8A-42A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1350 | 13.45*12.6*4.8 | 0.22uH-47uH | 0.7mΩ-130mΩ | 4.0A-75A | 2.6A-50A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1360 | 13.45*12.6*5.8 | 1.5uH-150uH | 2.9mΩ-350mΩ | 2.16A-30A | 1.2A-27A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1365 | 13.45*12.6*6.5 | 4.7uH-100uH | 8.5mΩ-170mΩ | 4A-24A | 3.5A-16A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1770 | 17.15*17.15*7.0 | 2.2uH-100uH | 2.5mΩ-130mΩ | 5A-34A | 3.7A-29A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| Automotive Grade molded SMD power inductor | FEXL0420A | 4.1*4.1*1.9 | 0.1uH-2.4uH | 6mΩ-38.7mΩ | 6A-33A | 4.6A-13.5A | - 55 °C + 125 °C | FEXL0420A.pdf |
| FEXL0430A | 4.1*4.1*2.8 | 0.47uH-6.8uH | 7.26mΩ-74.1mΩ | 3A-15A | 3A-10A | - 55 °C + 125 °C | FEXL0430A.pdf | ||
| FEXL0520A | 5.5*5.3*1.9 | 0.15uH-1.5uH | 4.6mΩ-18.7mΩ | 11.7A-27A | 6.4A-13.9A | - 55 °C + 125 °C | FEXL0520A.pdf | ||
| FEXL0530A | 5.5*5.3*2.9 | 0.15uH-4.7uH | 2.31mΩ-36.3mΩ | 7A-32.5A | 4.3A-14.3A | - 55 °C + 125 °C | FEXL0530A.pdf | ||
| FEXL0550A | 5.5*5.3*4.8 | 5.6uH-22uH | 24.2mΩ-99.65mΩ | 3A-7.2A | 2.5A-5.3A | - 55 °C + 125 °C | FEXL0550A.pdf | ||
| FEXL0630A | 6.6*6.4*2.9 | 0.18uH-4.5uH | 1.75mΩ-25.3mΩ | 8A-36A | 5A-24A | - 55 °C + 125 °C | FEXL0630A.pdf | ||
| FEXL0650A | 6.6*6.4*4.8 | 0.82uH-4.7uH | 4.18mΩ-18.4mΩ | 8A-20A | 6.5A-16A | - 55 °C + 125 °C | FEXL0650A.pdf | ||
| FEXL0660A | 6.6*6.4*5.8 | 1uH-22uH | 4.4mΩ-60.63mΩ | 4.8A-19A | 3.8A-16A | - 55 °C + 125 °C | FEXL0660A.pdf | ||
| FEXL0720A | 7.8*7.6*1.85 | 0.27uH-1uH | 3.5mΩ-10.8mΩ | 20A-32A | 8A-16A | - 55 °C + 125 °C | FEXL0720A.pdf | ||
| FEXL0730A | 7.8*7.6*2.9 | 1uH-8.2uH | 5mΩ-48.73mΩ | 9A-28A | 3A-16.1A | - 55 °C + 125 °C | FEXL0730A.pdf | ||
| FEXL0770A | 7.8*7.6*6.7 | 3.3uH-6.8uH | 9.42mΩ-19.6mΩ | 11A-15.1A | 7A-11.5A | - 55 °C + 125 °C | FEXL0770A.pdf | ||
| FEXL0880A | 8.9*8.5*7.7 | 1.8uH-10uH | 4mΩ-22.9mΩ | 10A-24A | 6.6A-18A | - 55 °C + 125 °C | FEXL0880A.pdf | ||
| FEXL1031A | 11.9*11.0*2.9 | 0.28uH-1.5uH | 1.6mΩ-6.6mΩ | 25A-58A | 12A-25.5A | - 55 °C + 125 °C | FEXL1031A.pdf | ||
| FEXL1060A | 11.9*11.0*5.7 | 0.68uH-4.7uH | 1.5mΩ-10.72mΩ | 22A-50A | 8.7A-22.5A | - 55 °C + 125 °C | FEXL1060A.pdf | ||
| FEXL1010A | 11.9*11.0*9.7 | 2.2uH-15uH | 2.8mΩ-19.3mΩ | 12.5A-29A | 9.9A-24.5A | - 55 °C + 125 °C | FEXL1010A.pdf | ||
| FEXL1580A | 16.5*15.5*7.7 | 2uH-8.2uH | 2.21mΩ-7.92mΩ | 25A-52A | 13A-29.5A | - 55 °C + 125 °C | FEXL1580A.pdf | ||
| FEXL1510A | 16.5*15.5*9.7 | 4.7uH-10uH | 3.8mΩ-8.6mΩ | 26A-39A | 18A-22A | - 55 °C + 125 °C | FEXL1510A.pdf | ||
| FEXL1513A | 16.5*15.5*12.7 | 4.7uH-33uH | 3.3mΩ-22.2mΩ | 16A-40A | 9A-23A | - 55 °C + 125 °C | FEXL1513A.pdf | ||
| Automotive Grade molded SMD power inductor | FAU0420 | 4.4*4.2*1.8 | 0.1uH-10uH | 3.1mΩ-282mΩ | 2.0A-22A | 1.5A-15A | - 55 °C + 155 °C | FAU0420.pdf |
| FAU0530 | 5.4*5.2*2.8 | 0.47uH-10uH | 5.3mΩ-103.5mΩ | 2.6A-13.0A | 2.5A-11A | - 55 °C + 155 °C | FAU0530.pdf | ||
| FAU0630 | 7.0*6.6*2.8 | 0.1uH-33uH | 0.63mΩ-230mΩ | 2.8A-70A | 2.1A-33A | - 55 °C + 155 °C | FAU0630.pdf | ||
| FAU1054 | 11.5*10.0*5.2 | 4.7uH-47uH | 8.3mΩ-103mΩ | 4.2A-13.5A | 3.6A-13A | - 55 °C + 155 °C | FAU1054.pdf | ||
| FAU1350 | 13.45*12.6*4.8 | 0.1uH-33uH | 0.33mΩ-57.5mΩ | 7.5A-100A | 5.5A-54A | - 55 °C + 155 °C | FAU1350.pdf |
Common mode choke
| Product picture | Product category | Series | SIZE(mm*mm*mm) | Inductance | DCR | lsat | lrmt | temperature | Specifications |
|---|---|---|---|---|---|---|---|---|---|
| Automotive Grade molded SMD power inductor | FAUL0412 | 4.4*4.2*1.0 | 0.15uH-4.7uH | 9mΩ-195mΩ | 1.8A-15A | 1.45A-7.5A | - 55 °C + 155 °C | FAUL系列规格书.pdf |
| FAUL0420 | 4.4*4.2*1.8 | 0.10uH-22uH | 4mΩ-363mΩ | 1.12A-22A | 0.9A-13A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0518 | 5.4*5.2*1.6 | 0.47uH-10uH | 9mΩ-155mΩ | 2.0A-12A | 2.2A-10.5A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0530 | 5.4*5.2*2.8 | 0.10uH-15uH | 3mΩ-170mΩ | 2.0A-30A | 1.6A-25A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0618 | 7.0*6.6*1.6 | 0.10uH-22uH | 2.3mΩ-350mΩ | 1.84A-38A | 1.4A-25A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0620 | 7.0*6.6*1.8 | 1.5uH-210uH | 18mΩ-145mΩ | 4.0A-12A | 1.8A-8A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0624 | 7.0*6.6*2.2 | 0.22uH-22uH | 3mΩ-230mΩ | 2.0A-30A | 1.6A-21A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0630 | 7.0*6.6*2.8 | 0.22uH-47uH | 3mΩ-380mΩ | 1.6A-34A | 1.2A-24A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0640 | 7.0*6.6*3.8 | 0.68uH-47uH | 4.8mΩ-320mΩ | 2A-19A | 1.5A-17A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0650 | 7.0*6.6*4.8 | 0.47uH-47uH | 3.9mΩ-230mΩ | 2.08A-21A | 1.5A-20A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0754 | 7.9*7.2*5.2 | 1.5uH-100uH | 7.3mΩ-348mΩ | 2.0A-16.3A | 1.6A-11.4A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1030 | 11.5*10.0*2.8 | 0.22uH-33uH | 1.2mΩ-160mΩ | 3.53A-50A | 2.3A-33A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1040 | 11*10.0*3.8 | 0.15uH-100uH | 0.65mΩ-340mΩ | 2.1A-75A | 1.8A-45A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1050 | 11*10.0*4.8 | 0.22uH-100uH | 0.8mΩ-290mΩ | 2.5A-65A | 1.8A-37A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1340 | 13.45*12.8*4.0 | 0.22uH-22uH | 0.9mΩ-51mΩ | 4.8A-50A | 3.8A-42A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1350 | 13.45*12.6*4.8 | 0.22uH-47uH | 0.7mΩ-130mΩ | 4.0A-75A | 2.6A-50A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1360 | 13.45*12.6*5.8 | 1.5uH-150uH | 2.9mΩ-350mΩ | 2.16A-30A | 1.2A-27A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1365 | 13.45*12.6*6.5 | 4.7uH-100uH | 8.5mΩ-170mΩ | 4A-24A | 3.5A-16A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1770 | 17.15*17.15*7.0 | 2.2uH-100uH | 2.5mΩ-130mΩ | 5A-34A | 3.7A-29A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| Automotive Grade molded SMD power inductor | FEXL0420A | 4.1*4.1*1.9 | 0.1uH-2.4uH | 6mΩ-38.7mΩ | 6A-33A | 4.6A-13.5A | - 55 °C + 125 °C | FEXL0420A.pdf |
| FEXL0430A | 4.1*4.1*2.8 | 0.47uH-6.8uH | 7.26mΩ-74.1mΩ | 3A-15A | 3A-10A | - 55 °C + 125 °C | FEXL0430A.pdf | ||
| FEXL0520A | 5.5*5.3*1.9 | 0.15uH-1.5uH | 4.6mΩ-18.7mΩ | 11.7A-27A | 6.4A-13.9A | - 55 °C + 125 °C | FEXL0520A.pdf | ||
| FEXL0530A | 5.5*5.3*2.9 | 0.15uH-4.7uH | 2.31mΩ-36.3mΩ | 7A-32.5A | 4.3A-14.3A | - 55 °C + 125 °C | FEXL0530A.pdf | ||
| FEXL0550A | 5.5*5.3*4.8 | 5.6uH-22uH | 24.2mΩ-99.65mΩ | 3A-7.2A | 2.5A-5.3A | - 55 °C + 125 °C | FEXL0550A.pdf | ||
| FEXL0630A | 6.6*6.4*2.9 | 0.18uH-4.5uH | 1.75mΩ-25.3mΩ | 8A-36A | 5A-24A | - 55 °C + 125 °C | FEXL0630A.pdf | ||
| FEXL0650A | 6.6*6.4*4.8 | 0.82uH-4.7uH | 4.18mΩ-18.4mΩ | 8A-20A | 6.5A-16A | - 55 °C + 125 °C | FEXL0650A.pdf | ||
| FEXL0660A | 6.6*6.4*5.8 | 1uH-22uH | 4.4mΩ-60.63mΩ | 4.8A-19A | 3.8A-16A | - 55 °C + 125 °C | FEXL0660A.pdf | ||
| FEXL0720A | 7.8*7.6*1.85 | 0.27uH-1uH | 3.5mΩ-10.8mΩ | 20A-32A | 8A-16A | - 55 °C + 125 °C | FEXL0720A.pdf | ||
| FEXL0730A | 7.8*7.6*2.9 | 1uH-8.2uH | 5mΩ-48.73mΩ | 9A-28A | 3A-16.1A | - 55 °C + 125 °C | FEXL0730A.pdf | ||
| FEXL0770A | 7.8*7.6*6.7 | 3.3uH-6.8uH | 9.42mΩ-19.6mΩ | 11A-15.1A | 7A-11.5A | - 55 °C + 125 °C | FEXL0770A.pdf | ||
| FEXL0880A | 8.9*8.5*7.7 | 1.8uH-10uH | 4mΩ-22.9mΩ | 10A-24A | 6.6A-18A | - 55 °C + 125 °C | FEXL0880A.pdf | ||
| FEXL1031A | 11.9*11.0*2.9 | 0.28uH-1.5uH | 1.6mΩ-6.6mΩ | 25A-58A | 12A-25.5A | - 55 °C + 125 °C | FEXL1031A.pdf | ||
| FEXL1060A | 11.9*11.0*5.7 | 0.68uH-4.7uH | 1.5mΩ-10.72mΩ | 22A-50A | 8.7A-22.5A | - 55 °C + 125 °C | FEXL1060A.pdf | ||
| FEXL1010A | 11.9*11.0*9.7 | 2.2uH-15uH | 2.8mΩ-19.3mΩ | 12.5A-29A | 9.9A-24.5A | - 55 °C + 125 °C | FEXL1010A.pdf | ||
| FEXL1580A | 16.5*15.5*7.7 | 2uH-8.2uH | 2.21mΩ-7.92mΩ | 25A-52A | 13A-29.5A | - 55 °C + 125 °C | FEXL1580A.pdf | ||
| FEXL1510A | 16.5*15.5*9.7 | 4.7uH-10uH | 3.8mΩ-8.6mΩ | 26A-39A | 18A-22A | - 55 °C + 125 °C | FEXL1510A.pdf | ||
| FEXL1513A | 16.5*15.5*12.7 | 4.7uH-33uH | 3.3mΩ-22.2mΩ | 16A-40A | 9A-23A | - 55 °C + 125 °C | FEXL1513A.pdf | ||
| Automotive Grade molded SMD power inductor | FAU0420 | 4.4*4.2*1.8 | 0.1uH-10uH | 3.1mΩ-282mΩ | 2.0A-22A | 1.5A-15A | - 55 °C + 155 °C | FAU0420.pdf |
| FAU0530 | 5.4*5.2*2.8 | 0.47uH-10uH | 5.3mΩ-103.5mΩ | 2.6A-13.0A | 2.5A-11A | - 55 °C + 155 °C | FAU0530.pdf | ||
| FAU0630 | 7.0*6.6*2.8 | 0.1uH-33uH | 0.63mΩ-230mΩ | 2.8A-70A | 2.1A-33A | - 55 °C + 155 °C | FAU0630.pdf | ||
| FAU1054 | 11.5*10.0*5.2 | 4.7uH-47uH | 8.3mΩ-103mΩ | 4.2A-13.5A | 3.6A-13A | - 55 °C + 155 °C | FAU1054.pdf | ||
| FAU1350 | 13.45*12.6*4.8 | 0.1uH-33uH | 0.33mΩ-57.5mΩ | 7.5A-100A | 5.5A-54A | - 55 °C + 155 °C | FAU1350.pdf |
Power Inductor
| Product picture | Product category | Series | SIZE(mm*mm*mm) | Inductance | DCR | lsat | lrmt | temperature | Specifications |
|---|---|---|---|---|---|---|---|---|---|
| Automotive Grade molded SMD power inductor | FAUL0412 | 4.4*4.2*1.0 | 0.15uH-4.7uH | 9mΩ-195mΩ | 1.8A-15A | 1.45A-7.5A | - 55 °C + 155 °C | FAUL系列规格书.pdf |
| FAUL0420 | 4.4*4.2*1.8 | 0.10uH-22uH | 4mΩ-363mΩ | 1.12A-22A | 0.9A-13A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0518 | 5.4*5.2*1.6 | 0.47uH-10uH | 9mΩ-155mΩ | 2.0A-12A | 2.2A-10.5A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0530 | 5.4*5.2*2.8 | 0.10uH-15uH | 3mΩ-170mΩ | 2.0A-30A | 1.6A-25A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0618 | 7.0*6.6*1.6 | 0.10uH-22uH | 2.3mΩ-350mΩ | 1.84A-38A | 1.4A-25A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0620 | 7.0*6.6*1.8 | 1.5uH-210uH | 18mΩ-145mΩ | 4.0A-12A | 1.8A-8A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0624 | 7.0*6.6*2.2 | 0.22uH-22uH | 3mΩ-230mΩ | 2.0A-30A | 1.6A-21A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0630 | 7.0*6.6*2.8 | 0.22uH-47uH | 3mΩ-380mΩ | 1.6A-34A | 1.2A-24A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0640 | 7.0*6.6*3.8 | 0.68uH-47uH | 4.8mΩ-320mΩ | 2A-19A | 1.5A-17A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0650 | 7.0*6.6*4.8 | 0.47uH-47uH | 3.9mΩ-230mΩ | 2.08A-21A | 1.5A-20A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0754 | 7.9*7.2*5.2 | 1.5uH-100uH | 7.3mΩ-348mΩ | 2.0A-16.3A | 1.6A-11.4A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1030 | 11.5*10.0*2.8 | 0.22uH-33uH | 1.2mΩ-160mΩ | 3.53A-50A | 2.3A-33A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1040 | 11*10.0*3.8 | 0.15uH-100uH | 0.65mΩ-340mΩ | 2.1A-75A | 1.8A-45A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1050 | 11*10.0*4.8 | 0.22uH-100uH | 0.8mΩ-290mΩ | 2.5A-65A | 1.8A-37A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1340 | 13.45*12.8*4.0 | 0.22uH-22uH | 0.9mΩ-51mΩ | 4.8A-50A | 3.8A-42A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1350 | 13.45*12.6*4.8 | 0.22uH-47uH | 0.7mΩ-130mΩ | 4.0A-75A | 2.6A-50A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1360 | 13.45*12.6*5.8 | 1.5uH-150uH | 2.9mΩ-350mΩ | 2.16A-30A | 1.2A-27A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1365 | 13.45*12.6*6.5 | 4.7uH-100uH | 8.5mΩ-170mΩ | 4A-24A | 3.5A-16A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1770 | 17.15*17.15*7.0 | 2.2uH-100uH | 2.5mΩ-130mΩ | 5A-34A | 3.7A-29A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| Automotive Grade molded SMD power inductor | FEXL0420A | 4.1*4.1*1.9 | 0.1uH-2.4uH | 6mΩ-38.7mΩ | 6A-33A | 4.6A-13.5A | - 55 °C + 125 °C | FEXL0420A.pdf |
| FEXL0430A | 4.1*4.1*2.8 | 0.47uH-6.8uH | 7.26mΩ-74.1mΩ | 3A-15A | 3A-10A | - 55 °C + 125 °C | FEXL0430A.pdf | ||
| FEXL0520A | 5.5*5.3*1.9 | 0.15uH-1.5uH | 4.6mΩ-18.7mΩ | 11.7A-27A | 6.4A-13.9A | - 55 °C + 125 °C | FEXL0520A.pdf | ||
| FEXL0530A | 5.5*5.3*2.9 | 0.15uH-4.7uH | 2.31mΩ-36.3mΩ | 7A-32.5A | 4.3A-14.3A | - 55 °C + 125 °C | FEXL0530A.pdf | ||
| FEXL0550A | 5.5*5.3*4.8 | 5.6uH-22uH | 24.2mΩ-99.65mΩ | 3A-7.2A | 2.5A-5.3A | - 55 °C + 125 °C | FEXL0550A.pdf | ||
| FEXL0630A | 6.6*6.4*2.9 | 0.18uH-4.5uH | 1.75mΩ-25.3mΩ | 8A-36A | 5A-24A | - 55 °C + 125 °C | FEXL0630A.pdf | ||
| FEXL0650A | 6.6*6.4*4.8 | 0.82uH-4.7uH | 4.18mΩ-18.4mΩ | 8A-20A | 6.5A-16A | - 55 °C + 125 °C | FEXL0650A.pdf | ||
| FEXL0660A | 6.6*6.4*5.8 | 1uH-22uH | 4.4mΩ-60.63mΩ | 4.8A-19A | 3.8A-16A | - 55 °C + 125 °C | FEXL0660A.pdf | ||
| FEXL0720A | 7.8*7.6*1.85 | 0.27uH-1uH | 3.5mΩ-10.8mΩ | 20A-32A | 8A-16A | - 55 °C + 125 °C | FEXL0720A.pdf | ||
| FEXL0730A | 7.8*7.6*2.9 | 1uH-8.2uH | 5mΩ-48.73mΩ | 9A-28A | 3A-16.1A | - 55 °C + 125 °C | FEXL0730A.pdf | ||
| FEXL0770A | 7.8*7.6*6.7 | 3.3uH-6.8uH | 9.42mΩ-19.6mΩ | 11A-15.1A | 7A-11.5A | - 55 °C + 125 °C | FEXL0770A.pdf | ||
| FEXL0880A | 8.9*8.5*7.7 | 1.8uH-10uH | 4mΩ-22.9mΩ | 10A-24A | 6.6A-18A | - 55 °C + 125 °C | FEXL0880A.pdf | ||
| FEXL1031A | 11.9*11.0*2.9 | 0.28uH-1.5uH | 1.6mΩ-6.6mΩ | 25A-58A | 12A-25.5A | - 55 °C + 125 °C | FEXL1031A.pdf | ||
| FEXL1060A | 11.9*11.0*5.7 | 0.68uH-4.7uH | 1.5mΩ-10.72mΩ | 22A-50A | 8.7A-22.5A | - 55 °C + 125 °C | FEXL1060A.pdf | ||
| FEXL1010A | 11.9*11.0*9.7 | 2.2uH-15uH | 2.8mΩ-19.3mΩ | 12.5A-29A | 9.9A-24.5A | - 55 °C + 125 °C | FEXL1010A.pdf | ||
| FEXL1580A | 16.5*15.5*7.7 | 2uH-8.2uH | 2.21mΩ-7.92mΩ | 25A-52A | 13A-29.5A | - 55 °C + 125 °C | FEXL1580A.pdf | ||
| FEXL1510A | 16.5*15.5*9.7 | 4.7uH-10uH | 3.8mΩ-8.6mΩ | 26A-39A | 18A-22A | - 55 °C + 125 °C | FEXL1510A.pdf | ||
| FEXL1513A | 16.5*15.5*12.7 | 4.7uH-33uH | 3.3mΩ-22.2mΩ | 16A-40A | 9A-23A | - 55 °C + 125 °C | FEXL1513A.pdf | ||
| Automotive Grade molded SMD power inductor | FAU0420 | 4.4*4.2*1.8 | 0.1uH-10uH | 3.1mΩ-282mΩ | 2.0A-22A | 1.5A-15A | - 55 °C + 155 °C | FAU0420.pdf |
| FAU0530 | 5.4*5.2*2.8 | 0.47uH-10uH | 5.3mΩ-103.5mΩ | 2.6A-13.0A | 2.5A-11A | - 55 °C + 155 °C | FAU0530.pdf | ||
| FAU0630 | 7.0*6.6*2.8 | 0.1uH-33uH | 0.63mΩ-230mΩ | 2.8A-70A | 2.1A-33A | - 55 °C + 155 °C | FAU0630.pdf | ||
| FAU1054 | 11.5*10.0*5.2 | 4.7uH-47uH | 8.3mΩ-103mΩ | 4.2A-13.5A | 3.6A-13A | - 55 °C + 155 °C | FAU1054.pdf | ||
| FAU1350 | 13.45*12.6*4.8 | 0.1uH-33uH | 0.33mΩ-57.5mΩ | 7.5A-100A | 5.5A-54A | - 55 °C + 155 °C | FAU1350.pdf |
Miniaturized Molded
| Product picture | Product category | Series | SIZE(mm*mm*mm) | Inductance | DCR | lsat | lrmt | temperature | Specifications |
|---|---|---|---|---|---|---|---|---|---|
| Automotive Grade molded SMD power inductor | FAUL0412 | 4.4*4.2*1.0 | 0.15uH-4.7uH | 9mΩ-195mΩ | 1.8A-15A | 1.45A-7.5A | - 55 °C + 155 °C | FAUL系列规格书.pdf |
| FAUL0420 | 4.4*4.2*1.8 | 0.10uH-22uH | 4mΩ-363mΩ | 1.12A-22A | 0.9A-13A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0518 | 5.4*5.2*1.6 | 0.47uH-10uH | 9mΩ-155mΩ | 2.0A-12A | 2.2A-10.5A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0530 | 5.4*5.2*2.8 | 0.10uH-15uH | 3mΩ-170mΩ | 2.0A-30A | 1.6A-25A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0618 | 7.0*6.6*1.6 | 0.10uH-22uH | 2.3mΩ-350mΩ | 1.84A-38A | 1.4A-25A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0620 | 7.0*6.6*1.8 | 1.5uH-210uH | 18mΩ-145mΩ | 4.0A-12A | 1.8A-8A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0624 | 7.0*6.6*2.2 | 0.22uH-22uH | 3mΩ-230mΩ | 2.0A-30A | 1.6A-21A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0630 | 7.0*6.6*2.8 | 0.22uH-47uH | 3mΩ-380mΩ | 1.6A-34A | 1.2A-24A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0640 | 7.0*6.6*3.8 | 0.68uH-47uH | 4.8mΩ-320mΩ | 2A-19A | 1.5A-17A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0650 | 7.0*6.6*4.8 | 0.47uH-47uH | 3.9mΩ-230mΩ | 2.08A-21A | 1.5A-20A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0754 | 7.9*7.2*5.2 | 1.5uH-100uH | 7.3mΩ-348mΩ | 2.0A-16.3A | 1.6A-11.4A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1030 | 11.5*10.0*2.8 | 0.22uH-33uH | 1.2mΩ-160mΩ | 3.53A-50A | 2.3A-33A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1040 | 11*10.0*3.8 | 0.15uH-100uH | 0.65mΩ-340mΩ | 2.1A-75A | 1.8A-45A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1050 | 11*10.0*4.8 | 0.22uH-100uH | 0.8mΩ-290mΩ | 2.5A-65A | 1.8A-37A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1340 | 13.45*12.8*4.0 | 0.22uH-22uH | 0.9mΩ-51mΩ | 4.8A-50A | 3.8A-42A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1350 | 13.45*12.6*4.8 | 0.22uH-47uH | 0.7mΩ-130mΩ | 4.0A-75A | 2.6A-50A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1360 | 13.45*12.6*5.8 | 1.5uH-150uH | 2.9mΩ-350mΩ | 2.16A-30A | 1.2A-27A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1365 | 13.45*12.6*6.5 | 4.7uH-100uH | 8.5mΩ-170mΩ | 4A-24A | 3.5A-16A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1770 | 17.15*17.15*7.0 | 2.2uH-100uH | 2.5mΩ-130mΩ | 5A-34A | 3.7A-29A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| Automotive Grade molded SMD power inductor | FEXL0420A | 4.1*4.1*1.9 | 0.1uH-2.4uH | 6mΩ-38.7mΩ | 6A-33A | 4.6A-13.5A | - 55 °C + 125 °C | FEXL0420A.pdf |
| FEXL0430A | 4.1*4.1*2.8 | 0.47uH-6.8uH | 7.26mΩ-74.1mΩ | 3A-15A | 3A-10A | - 55 °C + 125 °C | FEXL0430A.pdf | ||
| FEXL0520A | 5.5*5.3*1.9 | 0.15uH-1.5uH | 4.6mΩ-18.7mΩ | 11.7A-27A | 6.4A-13.9A | - 55 °C + 125 °C | FEXL0520A.pdf | ||
| FEXL0530A | 5.5*5.3*2.9 | 0.15uH-4.7uH | 2.31mΩ-36.3mΩ | 7A-32.5A | 4.3A-14.3A | - 55 °C + 125 °C | FEXL0530A.pdf | ||
| FEXL0550A | 5.5*5.3*4.8 | 5.6uH-22uH | 24.2mΩ-99.65mΩ | 3A-7.2A | 2.5A-5.3A | - 55 °C + 125 °C | FEXL0550A.pdf | ||
| FEXL0630A | 6.6*6.4*2.9 | 0.18uH-4.5uH | 1.75mΩ-25.3mΩ | 8A-36A | 5A-24A | - 55 °C + 125 °C | FEXL0630A.pdf | ||
| FEXL0650A | 6.6*6.4*4.8 | 0.82uH-4.7uH | 4.18mΩ-18.4mΩ | 8A-20A | 6.5A-16A | - 55 °C + 125 °C | FEXL0650A.pdf | ||
| FEXL0660A | 6.6*6.4*5.8 | 1uH-22uH | 4.4mΩ-60.63mΩ | 4.8A-19A | 3.8A-16A | - 55 °C + 125 °C | FEXL0660A.pdf | ||
| FEXL0720A | 7.8*7.6*1.85 | 0.27uH-1uH | 3.5mΩ-10.8mΩ | 20A-32A | 8A-16A | - 55 °C + 125 °C | FEXL0720A.pdf | ||
| FEXL0730A | 7.8*7.6*2.9 | 1uH-8.2uH | 5mΩ-48.73mΩ | 9A-28A | 3A-16.1A | - 55 °C + 125 °C | FEXL0730A.pdf | ||
| FEXL0770A | 7.8*7.6*6.7 | 3.3uH-6.8uH | 9.42mΩ-19.6mΩ | 11A-15.1A | 7A-11.5A | - 55 °C + 125 °C | FEXL0770A.pdf | ||
| FEXL0880A | 8.9*8.5*7.7 | 1.8uH-10uH | 4mΩ-22.9mΩ | 10A-24A | 6.6A-18A | - 55 °C + 125 °C | FEXL0880A.pdf | ||
| FEXL1031A | 11.9*11.0*2.9 | 0.28uH-1.5uH | 1.6mΩ-6.6mΩ | 25A-58A | 12A-25.5A | - 55 °C + 125 °C | FEXL1031A.pdf | ||
| FEXL1060A | 11.9*11.0*5.7 | 0.68uH-4.7uH | 1.5mΩ-10.72mΩ | 22A-50A | 8.7A-22.5A | - 55 °C + 125 °C | FEXL1060A.pdf | ||
| FEXL1010A | 11.9*11.0*9.7 | 2.2uH-15uH | 2.8mΩ-19.3mΩ | 12.5A-29A | 9.9A-24.5A | - 55 °C + 125 °C | FEXL1010A.pdf | ||
| FEXL1580A | 16.5*15.5*7.7 | 2uH-8.2uH | 2.21mΩ-7.92mΩ | 25A-52A | 13A-29.5A | - 55 °C + 125 °C | FEXL1580A.pdf | ||
| FEXL1510A | 16.5*15.5*9.7 | 4.7uH-10uH | 3.8mΩ-8.6mΩ | 26A-39A | 18A-22A | - 55 °C + 125 °C | FEXL1510A.pdf | ||
| FEXL1513A | 16.5*15.5*12.7 | 4.7uH-33uH | 3.3mΩ-22.2mΩ | 16A-40A | 9A-23A | - 55 °C + 125 °C | FEXL1513A.pdf | ||
| Automotive Grade molded SMD power inductor | FAU0420 | 4.4*4.2*1.8 | 0.1uH-10uH | 3.1mΩ-282mΩ | 2.0A-22A | 1.5A-15A | - 55 °C + 155 °C | FAU0420.pdf |
| FAU0530 | 5.4*5.2*2.8 | 0.47uH-10uH | 5.3mΩ-103.5mΩ | 2.6A-13.0A | 2.5A-11A | - 55 °C + 155 °C | FAU0530.pdf | ||
| FAU0630 | 7.0*6.6*2.8 | 0.1uH-33uH | 0.63mΩ-230mΩ | 2.8A-70A | 2.1A-33A | - 55 °C + 155 °C | FAU0630.pdf | ||
| FAU1054 | 11.5*10.0*5.2 | 4.7uH-47uH | 8.3mΩ-103mΩ | 4.2A-13.5A | 3.6A-13A | - 55 °C + 155 °C | FAU1054.pdf | ||
| FAU1350 | 13.45*12.6*4.8 | 0.1uH-33uH | 0.33mΩ-57.5mΩ | 7.5A-100A | 5.5A-54A | - 55 °C + 155 °C | FAU1350.pdf |
Wire Wound Chip Ferrite
| Product picture | Product category | Series | SIZE(mm*mm*mm) | Inductance | DCR | lsat | lrmt | temperature | Specifications |
|---|---|---|---|---|---|---|---|---|---|
| Automotive Grade molded SMD power inductor | FAUL0412 | 4.4*4.2*1.0 | 0.15uH-4.7uH | 9mΩ-195mΩ | 1.8A-15A | 1.45A-7.5A | - 55 °C + 155 °C | FAUL系列规格书.pdf |
| FAUL0420 | 4.4*4.2*1.8 | 0.10uH-22uH | 4mΩ-363mΩ | 1.12A-22A | 0.9A-13A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0518 | 5.4*5.2*1.6 | 0.47uH-10uH | 9mΩ-155mΩ | 2.0A-12A | 2.2A-10.5A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0530 | 5.4*5.2*2.8 | 0.10uH-15uH | 3mΩ-170mΩ | 2.0A-30A | 1.6A-25A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0618 | 7.0*6.6*1.6 | 0.10uH-22uH | 2.3mΩ-350mΩ | 1.84A-38A | 1.4A-25A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0620 | 7.0*6.6*1.8 | 1.5uH-210uH | 18mΩ-145mΩ | 4.0A-12A | 1.8A-8A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0624 | 7.0*6.6*2.2 | 0.22uH-22uH | 3mΩ-230mΩ | 2.0A-30A | 1.6A-21A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0630 | 7.0*6.6*2.8 | 0.22uH-47uH | 3mΩ-380mΩ | 1.6A-34A | 1.2A-24A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0640 | 7.0*6.6*3.8 | 0.68uH-47uH | 4.8mΩ-320mΩ | 2A-19A | 1.5A-17A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0650 | 7.0*6.6*4.8 | 0.47uH-47uH | 3.9mΩ-230mΩ | 2.08A-21A | 1.5A-20A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0754 | 7.9*7.2*5.2 | 1.5uH-100uH | 7.3mΩ-348mΩ | 2.0A-16.3A | 1.6A-11.4A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1030 | 11.5*10.0*2.8 | 0.22uH-33uH | 1.2mΩ-160mΩ | 3.53A-50A | 2.3A-33A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1040 | 11*10.0*3.8 | 0.15uH-100uH | 0.65mΩ-340mΩ | 2.1A-75A | 1.8A-45A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1050 | 11*10.0*4.8 | 0.22uH-100uH | 0.8mΩ-290mΩ | 2.5A-65A | 1.8A-37A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1340 | 13.45*12.8*4.0 | 0.22uH-22uH | 0.9mΩ-51mΩ | 4.8A-50A | 3.8A-42A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1350 | 13.45*12.6*4.8 | 0.22uH-47uH | 0.7mΩ-130mΩ | 4.0A-75A | 2.6A-50A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1360 | 13.45*12.6*5.8 | 1.5uH-150uH | 2.9mΩ-350mΩ | 2.16A-30A | 1.2A-27A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1365 | 13.45*12.6*6.5 | 4.7uH-100uH | 8.5mΩ-170mΩ | 4A-24A | 3.5A-16A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1770 | 17.15*17.15*7.0 | 2.2uH-100uH | 2.5mΩ-130mΩ | 5A-34A | 3.7A-29A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| Automotive Grade molded SMD power inductor | FEXL0420A | 4.1*4.1*1.9 | 0.1uH-2.4uH | 6mΩ-38.7mΩ | 6A-33A | 4.6A-13.5A | - 55 °C + 125 °C | FEXL0420A.pdf |
| FEXL0430A | 4.1*4.1*2.8 | 0.47uH-6.8uH | 7.26mΩ-74.1mΩ | 3A-15A | 3A-10A | - 55 °C + 125 °C | FEXL0430A.pdf | ||
| FEXL0520A | 5.5*5.3*1.9 | 0.15uH-1.5uH | 4.6mΩ-18.7mΩ | 11.7A-27A | 6.4A-13.9A | - 55 °C + 125 °C | FEXL0520A.pdf | ||
| FEXL0530A | 5.5*5.3*2.9 | 0.15uH-4.7uH | 2.31mΩ-36.3mΩ | 7A-32.5A | 4.3A-14.3A | - 55 °C + 125 °C | FEXL0530A.pdf | ||
| FEXL0550A | 5.5*5.3*4.8 | 5.6uH-22uH | 24.2mΩ-99.65mΩ | 3A-7.2A | 2.5A-5.3A | - 55 °C + 125 °C | FEXL0550A.pdf | ||
| FEXL0630A | 6.6*6.4*2.9 | 0.18uH-4.5uH | 1.75mΩ-25.3mΩ | 8A-36A | 5A-24A | - 55 °C + 125 °C | FEXL0630A.pdf | ||
| FEXL0650A | 6.6*6.4*4.8 | 0.82uH-4.7uH | 4.18mΩ-18.4mΩ | 8A-20A | 6.5A-16A | - 55 °C + 125 °C | FEXL0650A.pdf | ||
| FEXL0660A | 6.6*6.4*5.8 | 1uH-22uH | 4.4mΩ-60.63mΩ | 4.8A-19A | 3.8A-16A | - 55 °C + 125 °C | FEXL0660A.pdf | ||
| FEXL0720A | 7.8*7.6*1.85 | 0.27uH-1uH | 3.5mΩ-10.8mΩ | 20A-32A | 8A-16A | - 55 °C + 125 °C | FEXL0720A.pdf | ||
| FEXL0730A | 7.8*7.6*2.9 | 1uH-8.2uH | 5mΩ-48.73mΩ | 9A-28A | 3A-16.1A | - 55 °C + 125 °C | FEXL0730A.pdf | ||
| FEXL0770A | 7.8*7.6*6.7 | 3.3uH-6.8uH | 9.42mΩ-19.6mΩ | 11A-15.1A | 7A-11.5A | - 55 °C + 125 °C | FEXL0770A.pdf | ||
| FEXL0880A | 8.9*8.5*7.7 | 1.8uH-10uH | 4mΩ-22.9mΩ | 10A-24A | 6.6A-18A | - 55 °C + 125 °C | FEXL0880A.pdf | ||
| FEXL1031A | 11.9*11.0*2.9 | 0.28uH-1.5uH | 1.6mΩ-6.6mΩ | 25A-58A | 12A-25.5A | - 55 °C + 125 °C | FEXL1031A.pdf | ||
| FEXL1060A | 11.9*11.0*5.7 | 0.68uH-4.7uH | 1.5mΩ-10.72mΩ | 22A-50A | 8.7A-22.5A | - 55 °C + 125 °C | FEXL1060A.pdf | ||
| FEXL1010A | 11.9*11.0*9.7 | 2.2uH-15uH | 2.8mΩ-19.3mΩ | 12.5A-29A | 9.9A-24.5A | - 55 °C + 125 °C | FEXL1010A.pdf | ||
| FEXL1580A | 16.5*15.5*7.7 | 2uH-8.2uH | 2.21mΩ-7.92mΩ | 25A-52A | 13A-29.5A | - 55 °C + 125 °C | FEXL1580A.pdf | ||
| FEXL1510A | 16.5*15.5*9.7 | 4.7uH-10uH | 3.8mΩ-8.6mΩ | 26A-39A | 18A-22A | - 55 °C + 125 °C | FEXL1510A.pdf | ||
| FEXL1513A | 16.5*15.5*12.7 | 4.7uH-33uH | 3.3mΩ-22.2mΩ | 16A-40A | 9A-23A | - 55 °C + 125 °C | FEXL1513A.pdf | ||
| Automotive Grade molded SMD power inductor | FAU0420 | 4.4*4.2*1.8 | 0.1uH-10uH | 3.1mΩ-282mΩ | 2.0A-22A | 1.5A-15A | - 55 °C + 155 °C | FAU0420.pdf |
| FAU0530 | 5.4*5.2*2.8 | 0.47uH-10uH | 5.3mΩ-103.5mΩ | 2.6A-13.0A | 2.5A-11A | - 55 °C + 155 °C | FAU0530.pdf | ||
| FAU0630 | 7.0*6.6*2.8 | 0.1uH-33uH | 0.63mΩ-230mΩ | 2.8A-70A | 2.1A-33A | - 55 °C + 155 °C | FAU0630.pdf | ||
| FAU1054 | 11.5*10.0*5.2 | 4.7uH-47uH | 8.3mΩ-103mΩ | 4.2A-13.5A | 3.6A-13A | - 55 °C + 155 °C | FAU1054.pdf | ||
| FAU1350 | 13.45*12.6*4.8 | 0.1uH-33uH | 0.33mΩ-57.5mΩ | 7.5A-100A | 5.5A-54A | - 55 °C + 155 °C | FAU1350.pdf |
Molded power Inductor
| Product picture | Product category | Series | SIZE(mm*mm*mm) | Inductance | DCR | lsat | lrmt | temperature | Specifications |
|---|---|---|---|---|---|---|---|---|---|
| Automotive Grade molded SMD power inductor | FAUL0412 | 4.4*4.2*1.0 | 0.15uH-4.7uH | 9mΩ-195mΩ | 1.8A-15A | 1.45A-7.5A | - 55 °C + 155 °C | FAUL系列规格书.pdf |
| FAUL0420 | 4.4*4.2*1.8 | 0.10uH-22uH | 4mΩ-363mΩ | 1.12A-22A | 0.9A-13A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0518 | 5.4*5.2*1.6 | 0.47uH-10uH | 9mΩ-155mΩ | 2.0A-12A | 2.2A-10.5A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0530 | 5.4*5.2*2.8 | 0.10uH-15uH | 3mΩ-170mΩ | 2.0A-30A | 1.6A-25A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0618 | 7.0*6.6*1.6 | 0.10uH-22uH | 2.3mΩ-350mΩ | 1.84A-38A | 1.4A-25A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0620 | 7.0*6.6*1.8 | 1.5uH-210uH | 18mΩ-145mΩ | 4.0A-12A | 1.8A-8A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0624 | 7.0*6.6*2.2 | 0.22uH-22uH | 3mΩ-230mΩ | 2.0A-30A | 1.6A-21A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0630 | 7.0*6.6*2.8 | 0.22uH-47uH | 3mΩ-380mΩ | 1.6A-34A | 1.2A-24A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0640 | 7.0*6.6*3.8 | 0.68uH-47uH | 4.8mΩ-320mΩ | 2A-19A | 1.5A-17A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0650 | 7.0*6.6*4.8 | 0.47uH-47uH | 3.9mΩ-230mΩ | 2.08A-21A | 1.5A-20A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL0754 | 7.9*7.2*5.2 | 1.5uH-100uH | 7.3mΩ-348mΩ | 2.0A-16.3A | 1.6A-11.4A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1030 | 11.5*10.0*2.8 | 0.22uH-33uH | 1.2mΩ-160mΩ | 3.53A-50A | 2.3A-33A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1040 | 11*10.0*3.8 | 0.15uH-100uH | 0.65mΩ-340mΩ | 2.1A-75A | 1.8A-45A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1050 | 11*10.0*4.8 | 0.22uH-100uH | 0.8mΩ-290mΩ | 2.5A-65A | 1.8A-37A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1340 | 13.45*12.8*4.0 | 0.22uH-22uH | 0.9mΩ-51mΩ | 4.8A-50A | 3.8A-42A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1350 | 13.45*12.6*4.8 | 0.22uH-47uH | 0.7mΩ-130mΩ | 4.0A-75A | 2.6A-50A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1360 | 13.45*12.6*5.8 | 1.5uH-150uH | 2.9mΩ-350mΩ | 2.16A-30A | 1.2A-27A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1365 | 13.45*12.6*6.5 | 4.7uH-100uH | 8.5mΩ-170mΩ | 4A-24A | 3.5A-16A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| FAUL1770 | 17.15*17.15*7.0 | 2.2uH-100uH | 2.5mΩ-130mΩ | 5A-34A | 3.7A-29A | - 55 °C + 155 °C | FAUL系列规格书.pdf | ||
| Automotive Grade molded SMD power inductor | FEXL0420A | 4.1*4.1*1.9 | 0.1uH-2.4uH | 6mΩ-38.7mΩ | 6A-33A | 4.6A-13.5A | - 55 °C + 125 °C | FEXL0420A.pdf |
| FEXL0430A | 4.1*4.1*2.8 | 0.47uH-6.8uH | 7.26mΩ-74.1mΩ | 3A-15A | 3A-10A | - 55 °C + 125 °C | FEXL0430A.pdf | ||
| FEXL0520A | 5.5*5.3*1.9 | 0.15uH-1.5uH | 4.6mΩ-18.7mΩ | 11.7A-27A | 6.4A-13.9A | - 55 °C + 125 °C | FEXL0520A.pdf | ||
| FEXL0530A | 5.5*5.3*2.9 | 0.15uH-4.7uH | 2.31mΩ-36.3mΩ | 7A-32.5A | 4.3A-14.3A | - 55 °C + 125 °C | FEXL0530A.pdf | ||
| FEXL0550A | 5.5*5.3*4.8 | 5.6uH-22uH | 24.2mΩ-99.65mΩ | 3A-7.2A | 2.5A-5.3A | - 55 °C + 125 °C | FEXL0550A.pdf | ||
| FEXL0630A | 6.6*6.4*2.9 | 0.18uH-4.5uH | 1.75mΩ-25.3mΩ | 8A-36A | 5A-24A | - 55 °C + 125 °C | FEXL0630A.pdf | ||
| FEXL0650A | 6.6*6.4*4.8 | 0.82uH-4.7uH | 4.18mΩ-18.4mΩ | 8A-20A | 6.5A-16A | - 55 °C + 125 °C | FEXL0650A.pdf | ||
| FEXL0660A | 6.6*6.4*5.8 | 1uH-22uH | 4.4mΩ-60.63mΩ | 4.8A-19A | 3.8A-16A | - 55 °C + 125 °C | FEXL0660A.pdf | ||
| FEXL0720A | 7.8*7.6*1.85 | 0.27uH-1uH | 3.5mΩ-10.8mΩ | 20A-32A | 8A-16A | - 55 °C + 125 °C | FEXL0720A.pdf | ||
| FEXL0730A | 7.8*7.6*2.9 | 1uH-8.2uH | 5mΩ-48.73mΩ | 9A-28A | 3A-16.1A | - 55 °C + 125 °C | FEXL0730A.pdf | ||
| FEXL0770A | 7.8*7.6*6.7 | 3.3uH-6.8uH | 9.42mΩ-19.6mΩ | 11A-15.1A | 7A-11.5A | - 55 °C + 125 °C | FEXL0770A.pdf | ||
| FEXL0880A | 8.9*8.5*7.7 | 1.8uH-10uH | 4mΩ-22.9mΩ | 10A-24A | 6.6A-18A | - 55 °C + 125 °C | FEXL0880A.pdf | ||
| FEXL1031A | 11.9*11.0*2.9 | 0.28uH-1.5uH | 1.6mΩ-6.6mΩ | 25A-58A | 12A-25.5A | - 55 °C + 125 °C | FEXL1031A.pdf | ||
| FEXL1060A | 11.9*11.0*5.7 | 0.68uH-4.7uH | 1.5mΩ-10.72mΩ | 22A-50A | 8.7A-22.5A | - 55 °C + 125 °C | FEXL1060A.pdf | ||
| FEXL1010A | 11.9*11.0*9.7 | 2.2uH-15uH | 2.8mΩ-19.3mΩ | 12.5A-29A | 9.9A-24.5A | - 55 °C + 125 °C | FEXL1010A.pdf | ||
| FEXL1580A | 16.5*15.5*7.7 | 2uH-8.2uH | 2.21mΩ-7.92mΩ | 25A-52A | 13A-29.5A | - 55 °C + 125 °C | FEXL1580A.pdf | ||
| FEXL1510A | 16.5*15.5*9.7 | 4.7uH-10uH | 3.8mΩ-8.6mΩ | 26A-39A | 18A-22A | - 55 °C + 125 °C | FEXL1510A.pdf | ||
| FEXL1513A | 16.5*15.5*12.7 | 4.7uH-33uH | 3.3mΩ-22.2mΩ | 16A-40A | 9A-23A | - 55 °C + 125 °C | FEXL1513A.pdf | ||
| Automotive Grade molded SMD power inductor | FAU0420 | 4.4*4.2*1.8 | 0.1uH-10uH | 3.1mΩ-282mΩ | 2.0A-22A | 1.5A-15A | - 55 °C + 155 °C | FAU0420.pdf |
| FAU0530 | 5.4*5.2*2.8 | 0.47uH-10uH | 5.3mΩ-103.5mΩ | 2.6A-13.0A | 2.5A-11A | - 55 °C + 155 °C | FAU0530.pdf | ||
| FAU0630 | 7.0*6.6*2.8 | 0.1uH-33uH | 0.63mΩ-230mΩ | 2.8A-70A | 2.1A-33A | - 55 °C + 155 °C | FAU0630.pdf | ||
| FAU1054 | 11.5*10.0*5.2 | 4.7uH-47uH | 8.3mΩ-103mΩ | 4.2A-13.5A | 3.6A-13A | - 55 °C + 155 °C | FAU1054.pdf | ||
| FAU1350 | 13.45*12.6*4.8 | 0.1uH-33uH | 0.33mΩ-57.5mΩ | 7.5A-100A | 5.5A-54A | - 55 °C + 155 °C | FAU1350.pdf |
