型号筛选-----请点击
| 产品图片 | 产品类别 | 系列 | 长*宽*高(mm*mm*mm) | 电感值 | 直流电阻 | 饱和电流 | 温升电流 | 使用温度 | 规格书 |
|---|---|---|---|---|---|---|---|---|---|

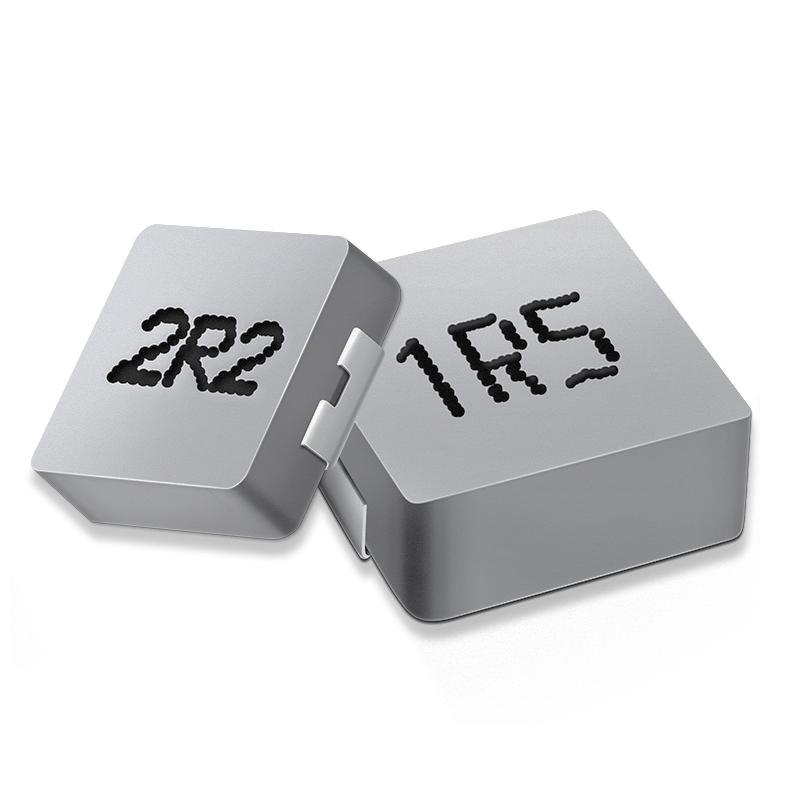

 | 一体成型电感 | FXL0412 | 4.2*4.4*1.0 | 0.15uH-4.7uH | 8mΩ-195mΩ | 2.8A-15.0A | 1.80A-7.50A | - 55 °C + 125 °C | FXL0412系列规格书.pdf |
| FXL0420 | 4.2*4.4*1.8 | 0.10uH-10.0uH | 3.5mΩ-282mΩ | 2.20A-22.0A | 1.60A-13.0A | - 55 °C + 125 °C | FXL0420系列规格书.pdf | ||
| FXL0518 | 5.2*5.4*1.6 | 0.47uH-10.0uH | 7.7mΩ-155mΩ | 3.0A-15.5A | 2.50A-10.5 | - 55 °C + 125 °C | FXL0518系列规格书.pdf | ||
| FXL0530 | 5.2*5.4*2.8 | 0.10uH-10.0uH | 2.4mΩ-125mΩ | 3.50A-33.0A | 3.20A-25.0A | - 55 °C + 125 °C | FXL0530系列规格书.pdf | ||
| FXL0615 | 6.6*7.0*1.3 | 0.47uH-10.0uH | 8.5mΩ-175mΩ | 3.0A-16.0A | 2.0A-10.0A | - 55 °C + 125 °C | FXL0615系列规格书.pdf | ||
| FXL0618 | 6.6*7.0*1.6 | 0.47uH-6.8uH | 8.0mΩ-110mΩ | 4.50A-18.0A | 3.0A-11.5A | - 55 °C + 125 °C | FXL0618系列规格书.pdf | ||
| FXL0624 | 6.6*7.0*2.2 | 0.22uH-15.0uH | 2.5mΩ-160mΩ | 3.30A-34.0A | 2.50A-21.0A | - 55 °C + 125 °C | FXL0624系列规格书.pdf | ||
| FXL0630 | 6.6*7.0*2.8 | 0.22uH-47.0uH | 2.5mΩ-385mΩ | 2.0A-34.0A | 1.50A-24.0A | - 55 °C + 125 °C | FXL0630系列规格书.pdf | ||
| FXL0640 | 6.6*7.0*3.8 | 0.68uH-47uH | 4.8mΩ-320mΩ | 2.5A-19.0A | 1.80A-17.0A | - 55 °C + 125 °C | FXL0640系列规格书.pdf | ||
| FXL0650 | 6.6*7.0*4.8 | 0.47uH-47.0uH | 3.5mΩ-230mΩ | 2.60A-21.00A | 2.00A-20.00A | - 55 °C + 125 °C | FXL0650系列规格书.pdf | ||
| FXL0840 | 8.8*8.2*3.8 | 0.22uH-47.0uH | 1.8mΩ-225mΩ | 2.90A-55.00A | 2.50A-30.00A | - 55 °C + 125 °C | FXL0840系列规格书.pdf | ||
| FXL1040 | 10*11.5*3.8 | 0.15uH-68.0uH | 0.50mΩ-195mΩ | 3.00A-75.0A | 2.50A-45.0A | - 55 °C + 125 °C | FXL1040系列规格书.pdf | ||
| FXL1050 | 10*11.5*4.8 | 0.22uH-100.0uH | 0.8mΩ-290mΩ | 2.80A-65.0A | 2.10A-37.0A | - 55 °C + 125 °C | FXL1050系列规格书.pdf | ||
| FXL1350 | 12.6*13.45*4.8 | 0.22uH-47.0uH | 0.50mΩ-130mΩ | 5.00A-75.0A | 3.00A-50.0A | - 55 °C + 125 °C | FXL1350系列规格书.pdf | ||
| FXL1360 | 12.6*13.45*5.8 | 4.7uH-150.0uH | 8.50mΩ-350mΩ | 2.70A-24.0A | 2.00A-20.0A | - 55 °C + 125 °C | FXL1360系列规格书.pdf | ||
| FXL1365 | 13.45*12.6*6.5 | 4.7uH-100.0uH | 8.50mΩ-170mΩ | 4.00A-24.0A | 3.50A-16.0A | - 55 °C + 125 °C | FXL1365系列规格书.pdf | ||
| FXL1770 | 17.15*17.15*7.0 | 2.2uH-100uH | 2.5mΩ-130mΩ | 5.00A-34A | 3.7A-29A | - 55 °C + 125 °C | FXL1770系列规格书.pdf | ||

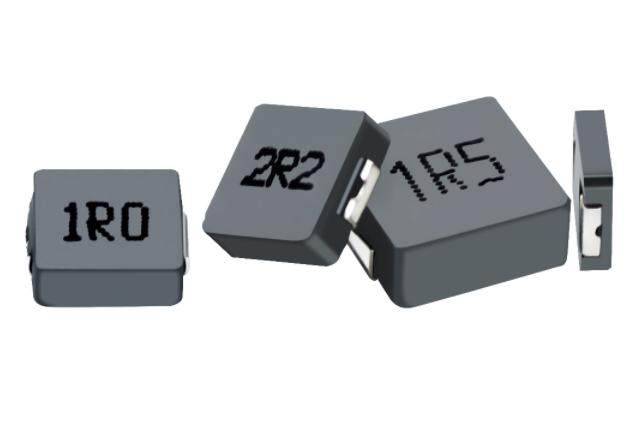

 | 一体成型电感 | FXLA0420 | 4.2*4.4*1.8 | 0.10uH-22.0uH | 3.5mΩ-363mΩ | 1.65A-22.0A | 1.2A-13.0A | - 55 °C + 125 °C | FXLA0420.pdf |
| FXLA0518 | 5.2*5.4*1.6 | 0.47uH-10.0uH | 7.7mΩ-155mΩ | 3.0A-15.5A | 2.5A-10.5A | - 55 °C + 125 °C | FXLA0518.pdf | ||
| FXLA0530 | 5.2*5.4*2.8 | 0.10uH-10.0uH | 2.4mΩ-125mΩ | 3.5A-33A | 3.2A-25A | - 55 °C + 125 °C | FXLA0530.pdf | ||
| FXLA0630 | 6.6*7.0*2.8 | 0.10uH-100.0uH | 0.9mΩ-890mΩ | 1.5A-56.0A | 1.0A-32.0A | - 55 °C + 125 °C | FXLA0630.pdf | ||
| FXLA0650 | 6.6*7.0*4.8 | 0.22uH-68uH | 2.4mΩ-330mΩ | 1.8A-32.0A | 1.4A-20.0A | - 55 °C + 125 °C | FXLA0650.pdf | ||
| FXLA1040 | 10*11.5*3.8 | 0.15uH-68uH | 0.50mΩ-195mΩ | 3.0A-75.0A | 2.5A-49.0A | - 55 °C + 125 °C | FXLA1040.pdf | ||
 | 羰基一体成型电感 | FXC0420 | 4.4*4.2*1.8 | 0.33uH-10uH | 8.6mΩ-243mΩ | 2.3A-18A | 1.8A-10A | -40℃+125℃ | FXC0420.pdf |
| FXC0530 | 5.7*5.2*2.8 | 0.22uH-22uH | 4.4mΩ-250mΩ | 1.7A-21A | 1.9A-15.5A | -40℃+125℃ | FXC0530.pdf | ||
| FXC0630 | 7.3*6.6*2.8 | 0.1uH-47uH | 1.7mΩ-363mΩ | 2A-60A | 1.75A-32.5A | -40℃+125℃ | FXC0630.pdf | ||
| FXC0650 | 7.3*6.6*4.8 | 0.22uH-33uH | 1.9mΩ-200mΩ | 3.5A-35A | 2A-25A | -40℃+125℃ | FXC0650.pdf | ||
| FXC1040 | 11.0*10.0*3.8 | 0.22uH-47uH | 1.0mΩ-167mΩ | 4.5A-60A | 3A-35A | -40℃+125℃ | FXC1040.pdf | ||
| FXC1350 | 13.5*12.6* 4.7 | 0.33uH-33uH | 0.9mΩ-88mΩ | 8A-80A | 5A-42A | -40℃+125℃ | FXC1350.pdf | ||
| FXC1360 | 13.5*12.6* 5.7 | 0.47uH-150uH | 1.3mΩ-350mΩ | 4A-64A | 3A-38A | -40℃+125℃ | FXC1360.pdf | ||
| FXC1770 | 17.5*17.0*7.0 | 1.0uH-100uH | 2mΩ-118mΩ | 6.5A-70A | 5.3A-52A | -40℃+125℃ | FXC1770.pdf |
车规级电感
| 产品图片 | 产品类别 | 系列 | 长*宽*高(mm*mm*mm) | 电感值 | 直流电阻 | 饱和电流 | 温升电流 | 使用温度 | 规格书 |
|---|---|---|---|---|---|---|---|---|---|
| 一体成型电感 | FXL0412 | 4.2*4.4*1.0 | 0.15uH-4.7uH | 8mΩ-195mΩ | 2.8A-15.0A | 1.80A-7.50A | - 55 °C + 125 °C | FXL0412系列规格书.pdf |
| FXL0420 | 4.2*4.4*1.8 | 0.10uH-10.0uH | 3.5mΩ-282mΩ | 2.20A-22.0A | 1.60A-13.0A | - 55 °C + 125 °C | FXL0420系列规格书.pdf | ||
| FXL0518 | 5.2*5.4*1.6 | 0.47uH-10.0uH | 7.7mΩ-155mΩ | 3.0A-15.5A | 2.50A-10.5 | - 55 °C + 125 °C | FXL0518系列规格书.pdf | ||
| FXL0530 | 5.2*5.4*2.8 | 0.10uH-10.0uH | 2.4mΩ-125mΩ | 3.50A-33.0A | 3.20A-25.0A | - 55 °C + 125 °C | FXL0530系列规格书.pdf | ||
| FXL0615 | 6.6*7.0*1.3 | 0.47uH-10.0uH | 8.5mΩ-175mΩ | 3.0A-16.0A | 2.0A-10.0A | - 55 °C + 125 °C | FXL0615系列规格书.pdf | ||
| FXL0618 | 6.6*7.0*1.6 | 0.47uH-6.8uH | 8.0mΩ-110mΩ | 4.50A-18.0A | 3.0A-11.5A | - 55 °C + 125 °C | FXL0618系列规格书.pdf | ||
| FXL0624 | 6.6*7.0*2.2 | 0.22uH-15.0uH | 2.5mΩ-160mΩ | 3.30A-34.0A | 2.50A-21.0A | - 55 °C + 125 °C | FXL0624系列规格书.pdf | ||
| FXL0630 | 6.6*7.0*2.8 | 0.22uH-47.0uH | 2.5mΩ-385mΩ | 2.0A-34.0A | 1.50A-24.0A | - 55 °C + 125 °C | FXL0630系列规格书.pdf | ||
| FXL0640 | 6.6*7.0*3.8 | 0.68uH-47uH | 4.8mΩ-320mΩ | 2.5A-19.0A | 1.80A-17.0A | - 55 °C + 125 °C | FXL0640系列规格书.pdf | ||
| FXL0650 | 6.6*7.0*4.8 | 0.47uH-47.0uH | 3.5mΩ-230mΩ | 2.60A-21.00A | 2.00A-20.00A | - 55 °C + 125 °C | FXL0650系列规格书.pdf | ||
| FXL0840 | 8.8*8.2*3.8 | 0.22uH-47.0uH | 1.8mΩ-225mΩ | 2.90A-55.00A | 2.50A-30.00A | - 55 °C + 125 °C | FXL0840系列规格书.pdf | ||
| FXL1040 | 10*11.5*3.8 | 0.15uH-68.0uH | 0.50mΩ-195mΩ | 3.00A-75.0A | 2.50A-45.0A | - 55 °C + 125 °C | FXL1040系列规格书.pdf | ||
| FXL1050 | 10*11.5*4.8 | 0.22uH-100.0uH | 0.8mΩ-290mΩ | 2.80A-65.0A | 2.10A-37.0A | - 55 °C + 125 °C | FXL1050系列规格书.pdf | ||
| FXL1350 | 12.6*13.45*4.8 | 0.22uH-47.0uH | 0.50mΩ-130mΩ | 5.00A-75.0A | 3.00A-50.0A | - 55 °C + 125 °C | FXL1350系列规格书.pdf | ||
| FXL1360 | 12.6*13.45*5.8 | 4.7uH-150.0uH | 8.50mΩ-350mΩ | 2.70A-24.0A | 2.00A-20.0A | - 55 °C + 125 °C | FXL1360系列规格书.pdf | ||
| FXL1365 | 13.45*12.6*6.5 | 4.7uH-100.0uH | 8.50mΩ-170mΩ | 4.00A-24.0A | 3.50A-16.0A | - 55 °C + 125 °C | FXL1365系列规格书.pdf | ||
| FXL1770 | 17.15*17.15*7.0 | 2.2uH-100uH | 2.5mΩ-130mΩ | 5.00A-34A | 3.7A-29A | - 55 °C + 125 °C | FXL1770系列规格书.pdf | ||
| 一体成型电感 | FXLA0420 | 4.2*4.4*1.8 | 0.10uH-22.0uH | 3.5mΩ-363mΩ | 1.65A-22.0A | 1.2A-13.0A | - 55 °C + 125 °C | FXLA0420.pdf |
| FXLA0518 | 5.2*5.4*1.6 | 0.47uH-10.0uH | 7.7mΩ-155mΩ | 3.0A-15.5A | 2.5A-10.5A | - 55 °C + 125 °C | FXLA0518.pdf | ||
| FXLA0530 | 5.2*5.4*2.8 | 0.10uH-10.0uH | 2.4mΩ-125mΩ | 3.5A-33A | 3.2A-25A | - 55 °C + 125 °C | FXLA0530.pdf | ||
| FXLA0630 | 6.6*7.0*2.8 | 0.10uH-100.0uH | 0.9mΩ-890mΩ | 1.5A-56.0A | 1.0A-32.0A | - 55 °C + 125 °C | FXLA0630.pdf | ||
| FXLA0650 | 6.6*7.0*4.8 | 0.22uH-68uH | 2.4mΩ-330mΩ | 1.8A-32.0A | 1.4A-20.0A | - 55 °C + 125 °C | FXLA0650.pdf | ||
| FXLA1040 | 10*11.5*3.8 | 0.15uH-68uH | 0.50mΩ-195mΩ | 3.0A-75.0A | 2.5A-49.0A | - 55 °C + 125 °C | FXLA1040.pdf | ||
| 羰基一体成型电感 | FXC0420 | 4.4*4.2*1.8 | 0.33uH-10uH | 8.6mΩ-243mΩ | 2.3A-18A | 1.8A-10A | -40℃+125℃ | FXC0420.pdf |
| FXC0530 | 5.7*5.2*2.8 | 0.22uH-22uH | 4.4mΩ-250mΩ | 1.7A-21A | 1.9A-15.5A | -40℃+125℃ | FXC0530.pdf | ||
| FXC0630 | 7.3*6.6*2.8 | 0.1uH-47uH | 1.7mΩ-363mΩ | 2A-60A | 1.75A-32.5A | -40℃+125℃ | FXC0630.pdf | ||
| FXC0650 | 7.3*6.6*4.8 | 0.22uH-33uH | 1.9mΩ-200mΩ | 3.5A-35A | 2A-25A | -40℃+125℃ | FXC0650.pdf | ||
| FXC1040 | 11.0*10.0*3.8 | 0.22uH-47uH | 1.0mΩ-167mΩ | 4.5A-60A | 3A-35A | -40℃+125℃ | FXC1040.pdf | ||
| FXC1350 | 13.5*12.6* 4.7 | 0.33uH-33uH | 0.9mΩ-88mΩ | 8A-80A | 5A-42A | -40℃+125℃ | FXC1350.pdf | ||
| FXC1360 | 13.5*12.6* 5.7 | 0.47uH-150uH | 1.3mΩ-350mΩ | 4A-64A | 3A-38A | -40℃+125℃ | FXC1360.pdf | ||
| FXC1770 | 17.5*17.0*7.0 | 1.0uH-100uH | 2mΩ-118mΩ | 6.5A-70A | 5.3A-52A | -40℃+125℃ | FXC1770.pdf |
车规级耦合电感
| 产品图片 | 产品类别 | 系列 | 长*宽*高(mm*mm*mm) | 电感值 | 直流电阻 | 饱和电流 | 温升电流 | 使用温度 | 规格书 |
|---|---|---|---|---|---|---|---|---|---|
| 一体成型电感 | FXL0412 | 4.2*4.4*1.0 | 0.15uH-4.7uH | 8mΩ-195mΩ | 2.8A-15.0A | 1.80A-7.50A | - 55 °C + 125 °C | FXL0412系列规格书.pdf |
| FXL0420 | 4.2*4.4*1.8 | 0.10uH-10.0uH | 3.5mΩ-282mΩ | 2.20A-22.0A | 1.60A-13.0A | - 55 °C + 125 °C | FXL0420系列规格书.pdf | ||
| FXL0518 | 5.2*5.4*1.6 | 0.47uH-10.0uH | 7.7mΩ-155mΩ | 3.0A-15.5A | 2.50A-10.5 | - 55 °C + 125 °C | FXL0518系列规格书.pdf | ||
| FXL0530 | 5.2*5.4*2.8 | 0.10uH-10.0uH | 2.4mΩ-125mΩ | 3.50A-33.0A | 3.20A-25.0A | - 55 °C + 125 °C | FXL0530系列规格书.pdf | ||
| FXL0615 | 6.6*7.0*1.3 | 0.47uH-10.0uH | 8.5mΩ-175mΩ | 3.0A-16.0A | 2.0A-10.0A | - 55 °C + 125 °C | FXL0615系列规格书.pdf | ||
| FXL0618 | 6.6*7.0*1.6 | 0.47uH-6.8uH | 8.0mΩ-110mΩ | 4.50A-18.0A | 3.0A-11.5A | - 55 °C + 125 °C | FXL0618系列规格书.pdf | ||
| FXL0624 | 6.6*7.0*2.2 | 0.22uH-15.0uH | 2.5mΩ-160mΩ | 3.30A-34.0A | 2.50A-21.0A | - 55 °C + 125 °C | FXL0624系列规格书.pdf | ||
| FXL0630 | 6.6*7.0*2.8 | 0.22uH-47.0uH | 2.5mΩ-385mΩ | 2.0A-34.0A | 1.50A-24.0A | - 55 °C + 125 °C | FXL0630系列规格书.pdf | ||
| FXL0640 | 6.6*7.0*3.8 | 0.68uH-47uH | 4.8mΩ-320mΩ | 2.5A-19.0A | 1.80A-17.0A | - 55 °C + 125 °C | FXL0640系列规格书.pdf | ||
| FXL0650 | 6.6*7.0*4.8 | 0.47uH-47.0uH | 3.5mΩ-230mΩ | 2.60A-21.00A | 2.00A-20.00A | - 55 °C + 125 °C | FXL0650系列规格书.pdf | ||
| FXL0840 | 8.8*8.2*3.8 | 0.22uH-47.0uH | 1.8mΩ-225mΩ | 2.90A-55.00A | 2.50A-30.00A | - 55 °C + 125 °C | FXL0840系列规格书.pdf | ||
| FXL1040 | 10*11.5*3.8 | 0.15uH-68.0uH | 0.50mΩ-195mΩ | 3.00A-75.0A | 2.50A-45.0A | - 55 °C + 125 °C | FXL1040系列规格书.pdf | ||
| FXL1050 | 10*11.5*4.8 | 0.22uH-100.0uH | 0.8mΩ-290mΩ | 2.80A-65.0A | 2.10A-37.0A | - 55 °C + 125 °C | FXL1050系列规格书.pdf | ||
| FXL1350 | 12.6*13.45*4.8 | 0.22uH-47.0uH | 0.50mΩ-130mΩ | 5.00A-75.0A | 3.00A-50.0A | - 55 °C + 125 °C | FXL1350系列规格书.pdf | ||
| FXL1360 | 12.6*13.45*5.8 | 4.7uH-150.0uH | 8.50mΩ-350mΩ | 2.70A-24.0A | 2.00A-20.0A | - 55 °C + 125 °C | FXL1360系列规格书.pdf | ||
| FXL1365 | 13.45*12.6*6.5 | 4.7uH-100.0uH | 8.50mΩ-170mΩ | 4.00A-24.0A | 3.50A-16.0A | - 55 °C + 125 °C | FXL1365系列规格书.pdf | ||
| FXL1770 | 17.15*17.15*7.0 | 2.2uH-100uH | 2.5mΩ-130mΩ | 5.00A-34A | 3.7A-29A | - 55 °C + 125 °C | FXL1770系列规格书.pdf | ||
| 一体成型电感 | FXLA0420 | 4.2*4.4*1.8 | 0.10uH-22.0uH | 3.5mΩ-363mΩ | 1.65A-22.0A | 1.2A-13.0A | - 55 °C + 125 °C | FXLA0420.pdf |
| FXLA0518 | 5.2*5.4*1.6 | 0.47uH-10.0uH | 7.7mΩ-155mΩ | 3.0A-15.5A | 2.5A-10.5A | - 55 °C + 125 °C | FXLA0518.pdf | ||
| FXLA0530 | 5.2*5.4*2.8 | 0.10uH-10.0uH | 2.4mΩ-125mΩ | 3.5A-33A | 3.2A-25A | - 55 °C + 125 °C | FXLA0530.pdf | ||
| FXLA0630 | 6.6*7.0*2.8 | 0.10uH-100.0uH | 0.9mΩ-890mΩ | 1.5A-56.0A | 1.0A-32.0A | - 55 °C + 125 °C | FXLA0630.pdf | ||
| FXLA0650 | 6.6*7.0*4.8 | 0.22uH-68uH | 2.4mΩ-330mΩ | 1.8A-32.0A | 1.4A-20.0A | - 55 °C + 125 °C | FXLA0650.pdf | ||
| FXLA1040 | 10*11.5*3.8 | 0.15uH-68uH | 0.50mΩ-195mΩ | 3.0A-75.0A | 2.5A-49.0A | - 55 °C + 125 °C | FXLA1040.pdf | ||
| 羰基一体成型电感 | FXC0420 | 4.4*4.2*1.8 | 0.33uH-10uH | 8.6mΩ-243mΩ | 2.3A-18A | 1.8A-10A | -40℃+125℃ | FXC0420.pdf |
| FXC0530 | 5.7*5.2*2.8 | 0.22uH-22uH | 4.4mΩ-250mΩ | 1.7A-21A | 1.9A-15.5A | -40℃+125℃ | FXC0530.pdf | ||
| FXC0630 | 7.3*6.6*2.8 | 0.1uH-47uH | 1.7mΩ-363mΩ | 2A-60A | 1.75A-32.5A | -40℃+125℃ | FXC0630.pdf | ||
| FXC0650 | 7.3*6.6*4.8 | 0.22uH-33uH | 1.9mΩ-200mΩ | 3.5A-35A | 2A-25A | -40℃+125℃ | FXC0650.pdf | ||
| FXC1040 | 11.0*10.0*3.8 | 0.22uH-47uH | 1.0mΩ-167mΩ | 4.5A-60A | 3A-35A | -40℃+125℃ | FXC1040.pdf | ||
| FXC1350 | 13.5*12.6* 4.7 | 0.33uH-33uH | 0.9mΩ-88mΩ | 8A-80A | 5A-42A | -40℃+125℃ | FXC1350.pdf | ||
| FXC1360 | 13.5*12.6* 5.7 | 0.47uH-150uH | 1.3mΩ-350mΩ | 4A-64A | 3A-38A | -40℃+125℃ | FXC1360.pdf | ||
| FXC1770 | 17.5*17.0*7.0 | 1.0uH-100uH | 2mΩ-118mΩ | 6.5A-70A | 5.3A-52A | -40℃+125℃ | FXC1770.pdf |
磁封胶功率电感
| 产品图片 | 产品类别 | 系列 | 长*宽*高(mm*mm*mm) | 电感值 | 直流电阻 | 饱和电流 | 温升电流 | 使用温度 | 规格书 |
|---|---|---|---|---|---|---|---|---|---|
| 一体成型电感 | FXL0412 | 4.2*4.4*1.0 | 0.15uH-4.7uH | 8mΩ-195mΩ | 2.8A-15.0A | 1.80A-7.50A | - 55 °C + 125 °C | FXL0412系列规格书.pdf |
| FXL0420 | 4.2*4.4*1.8 | 0.10uH-10.0uH | 3.5mΩ-282mΩ | 2.20A-22.0A | 1.60A-13.0A | - 55 °C + 125 °C | FXL0420系列规格书.pdf | ||
| FXL0518 | 5.2*5.4*1.6 | 0.47uH-10.0uH | 7.7mΩ-155mΩ | 3.0A-15.5A | 2.50A-10.5 | - 55 °C + 125 °C | FXL0518系列规格书.pdf | ||
| FXL0530 | 5.2*5.4*2.8 | 0.10uH-10.0uH | 2.4mΩ-125mΩ | 3.50A-33.0A | 3.20A-25.0A | - 55 °C + 125 °C | FXL0530系列规格书.pdf | ||
| FXL0615 | 6.6*7.0*1.3 | 0.47uH-10.0uH | 8.5mΩ-175mΩ | 3.0A-16.0A | 2.0A-10.0A | - 55 °C + 125 °C | FXL0615系列规格书.pdf | ||
| FXL0618 | 6.6*7.0*1.6 | 0.47uH-6.8uH | 8.0mΩ-110mΩ | 4.50A-18.0A | 3.0A-11.5A | - 55 °C + 125 °C | FXL0618系列规格书.pdf | ||
| FXL0624 | 6.6*7.0*2.2 | 0.22uH-15.0uH | 2.5mΩ-160mΩ | 3.30A-34.0A | 2.50A-21.0A | - 55 °C + 125 °C | FXL0624系列规格书.pdf | ||
| FXL0630 | 6.6*7.0*2.8 | 0.22uH-47.0uH | 2.5mΩ-385mΩ | 2.0A-34.0A | 1.50A-24.0A | - 55 °C + 125 °C | FXL0630系列规格书.pdf | ||
| FXL0640 | 6.6*7.0*3.8 | 0.68uH-47uH | 4.8mΩ-320mΩ | 2.5A-19.0A | 1.80A-17.0A | - 55 °C + 125 °C | FXL0640系列规格书.pdf | ||
| FXL0650 | 6.6*7.0*4.8 | 0.47uH-47.0uH | 3.5mΩ-230mΩ | 2.60A-21.00A | 2.00A-20.00A | - 55 °C + 125 °C | FXL0650系列规格书.pdf | ||
| FXL0840 | 8.8*8.2*3.8 | 0.22uH-47.0uH | 1.8mΩ-225mΩ | 2.90A-55.00A | 2.50A-30.00A | - 55 °C + 125 °C | FXL0840系列规格书.pdf | ||
| FXL1040 | 10*11.5*3.8 | 0.15uH-68.0uH | 0.50mΩ-195mΩ | 3.00A-75.0A | 2.50A-45.0A | - 55 °C + 125 °C | FXL1040系列规格书.pdf | ||
| FXL1050 | 10*11.5*4.8 | 0.22uH-100.0uH | 0.8mΩ-290mΩ | 2.80A-65.0A | 2.10A-37.0A | - 55 °C + 125 °C | FXL1050系列规格书.pdf | ||
| FXL1350 | 12.6*13.45*4.8 | 0.22uH-47.0uH | 0.50mΩ-130mΩ | 5.00A-75.0A | 3.00A-50.0A | - 55 °C + 125 °C | FXL1350系列规格书.pdf | ||
| FXL1360 | 12.6*13.45*5.8 | 4.7uH-150.0uH | 8.50mΩ-350mΩ | 2.70A-24.0A | 2.00A-20.0A | - 55 °C + 125 °C | FXL1360系列规格书.pdf | ||
| FXL1365 | 13.45*12.6*6.5 | 4.7uH-100.0uH | 8.50mΩ-170mΩ | 4.00A-24.0A | 3.50A-16.0A | - 55 °C + 125 °C | FXL1365系列规格书.pdf | ||
| FXL1770 | 17.15*17.15*7.0 | 2.2uH-100uH | 2.5mΩ-130mΩ | 5.00A-34A | 3.7A-29A | - 55 °C + 125 °C | FXL1770系列规格书.pdf | ||
| 一体成型电感 | FXLA0420 | 4.2*4.4*1.8 | 0.10uH-22.0uH | 3.5mΩ-363mΩ | 1.65A-22.0A | 1.2A-13.0A | - 55 °C + 125 °C | FXLA0420.pdf |
| FXLA0518 | 5.2*5.4*1.6 | 0.47uH-10.0uH | 7.7mΩ-155mΩ | 3.0A-15.5A | 2.5A-10.5A | - 55 °C + 125 °C | FXLA0518.pdf | ||
| FXLA0530 | 5.2*5.4*2.8 | 0.10uH-10.0uH | 2.4mΩ-125mΩ | 3.5A-33A | 3.2A-25A | - 55 °C + 125 °C | FXLA0530.pdf | ||
| FXLA0630 | 6.6*7.0*2.8 | 0.10uH-100.0uH | 0.9mΩ-890mΩ | 1.5A-56.0A | 1.0A-32.0A | - 55 °C + 125 °C | FXLA0630.pdf | ||
| FXLA0650 | 6.6*7.0*4.8 | 0.22uH-68uH | 2.4mΩ-330mΩ | 1.8A-32.0A | 1.4A-20.0A | - 55 °C + 125 °C | FXLA0650.pdf | ||
| FXLA1040 | 10*11.5*3.8 | 0.15uH-68uH | 0.50mΩ-195mΩ | 3.0A-75.0A | 2.5A-49.0A | - 55 °C + 125 °C | FXLA1040.pdf | ||
| 羰基一体成型电感 | FXC0420 | 4.4*4.2*1.8 | 0.33uH-10uH | 8.6mΩ-243mΩ | 2.3A-18A | 1.8A-10A | -40℃+125℃ | FXC0420.pdf |
| FXC0530 | 5.7*5.2*2.8 | 0.22uH-22uH | 4.4mΩ-250mΩ | 1.7A-21A | 1.9A-15.5A | -40℃+125℃ | FXC0530.pdf | ||
| FXC0630 | 7.3*6.6*2.8 | 0.1uH-47uH | 1.7mΩ-363mΩ | 2A-60A | 1.75A-32.5A | -40℃+125℃ | FXC0630.pdf | ||
| FXC0650 | 7.3*6.6*4.8 | 0.22uH-33uH | 1.9mΩ-200mΩ | 3.5A-35A | 2A-25A | -40℃+125℃ | FXC0650.pdf | ||
| FXC1040 | 11.0*10.0*3.8 | 0.22uH-47uH | 1.0mΩ-167mΩ | 4.5A-60A | 3A-35A | -40℃+125℃ | FXC1040.pdf | ||
| FXC1350 | 13.5*12.6* 4.7 | 0.33uH-33uH | 0.9mΩ-88mΩ | 8A-80A | 5A-42A | -40℃+125℃ | FXC1350.pdf | ||
| FXC1360 | 13.5*12.6* 5.7 | 0.47uH-150uH | 1.3mΩ-350mΩ | 4A-64A | 3A-38A | -40℃+125℃ | FXC1360.pdf | ||
| FXC1770 | 17.5*17.0*7.0 | 1.0uH-100uH | 2mΩ-118mΩ | 6.5A-70A | 5.3A-52A | -40℃+125℃ | FXC1770.pdf |
共模电感
| 产品图片 | 产品类别 | 系列 | 长*宽*高(mm*mm*mm) | 电感值 | 直流电阻 | 饱和电流 | 温升电流 | 使用温度 | 规格书 |
|---|---|---|---|---|---|---|---|---|---|
| 一体成型电感 | FXL0412 | 4.2*4.4*1.0 | 0.15uH-4.7uH | 8mΩ-195mΩ | 2.8A-15.0A | 1.80A-7.50A | - 55 °C + 125 °C | FXL0412系列规格书.pdf |
| FXL0420 | 4.2*4.4*1.8 | 0.10uH-10.0uH | 3.5mΩ-282mΩ | 2.20A-22.0A | 1.60A-13.0A | - 55 °C + 125 °C | FXL0420系列规格书.pdf | ||
| FXL0518 | 5.2*5.4*1.6 | 0.47uH-10.0uH | 7.7mΩ-155mΩ | 3.0A-15.5A | 2.50A-10.5 | - 55 °C + 125 °C | FXL0518系列规格书.pdf | ||
| FXL0530 | 5.2*5.4*2.8 | 0.10uH-10.0uH | 2.4mΩ-125mΩ | 3.50A-33.0A | 3.20A-25.0A | - 55 °C + 125 °C | FXL0530系列规格书.pdf | ||
| FXL0615 | 6.6*7.0*1.3 | 0.47uH-10.0uH | 8.5mΩ-175mΩ | 3.0A-16.0A | 2.0A-10.0A | - 55 °C + 125 °C | FXL0615系列规格书.pdf | ||
| FXL0618 | 6.6*7.0*1.6 | 0.47uH-6.8uH | 8.0mΩ-110mΩ | 4.50A-18.0A | 3.0A-11.5A | - 55 °C + 125 °C | FXL0618系列规格书.pdf | ||
| FXL0624 | 6.6*7.0*2.2 | 0.22uH-15.0uH | 2.5mΩ-160mΩ | 3.30A-34.0A | 2.50A-21.0A | - 55 °C + 125 °C | FXL0624系列规格书.pdf | ||
| FXL0630 | 6.6*7.0*2.8 | 0.22uH-47.0uH | 2.5mΩ-385mΩ | 2.0A-34.0A | 1.50A-24.0A | - 55 °C + 125 °C | FXL0630系列规格书.pdf | ||
| FXL0640 | 6.6*7.0*3.8 | 0.68uH-47uH | 4.8mΩ-320mΩ | 2.5A-19.0A | 1.80A-17.0A | - 55 °C + 125 °C | FXL0640系列规格书.pdf | ||
| FXL0650 | 6.6*7.0*4.8 | 0.47uH-47.0uH | 3.5mΩ-230mΩ | 2.60A-21.00A | 2.00A-20.00A | - 55 °C + 125 °C | FXL0650系列规格书.pdf | ||
| FXL0840 | 8.8*8.2*3.8 | 0.22uH-47.0uH | 1.8mΩ-225mΩ | 2.90A-55.00A | 2.50A-30.00A | - 55 °C + 125 °C | FXL0840系列规格书.pdf | ||
| FXL1040 | 10*11.5*3.8 | 0.15uH-68.0uH | 0.50mΩ-195mΩ | 3.00A-75.0A | 2.50A-45.0A | - 55 °C + 125 °C | FXL1040系列规格书.pdf | ||
| FXL1050 | 10*11.5*4.8 | 0.22uH-100.0uH | 0.8mΩ-290mΩ | 2.80A-65.0A | 2.10A-37.0A | - 55 °C + 125 °C | FXL1050系列规格书.pdf | ||
| FXL1350 | 12.6*13.45*4.8 | 0.22uH-47.0uH | 0.50mΩ-130mΩ | 5.00A-75.0A | 3.00A-50.0A | - 55 °C + 125 °C | FXL1350系列规格书.pdf | ||
| FXL1360 | 12.6*13.45*5.8 | 4.7uH-150.0uH | 8.50mΩ-350mΩ | 2.70A-24.0A | 2.00A-20.0A | - 55 °C + 125 °C | FXL1360系列规格书.pdf | ||
| FXL1365 | 13.45*12.6*6.5 | 4.7uH-100.0uH | 8.50mΩ-170mΩ | 4.00A-24.0A | 3.50A-16.0A | - 55 °C + 125 °C | FXL1365系列规格书.pdf | ||
| FXL1770 | 17.15*17.15*7.0 | 2.2uH-100uH | 2.5mΩ-130mΩ | 5.00A-34A | 3.7A-29A | - 55 °C + 125 °C | FXL1770系列规格书.pdf | ||
| 一体成型电感 | FXLA0420 | 4.2*4.4*1.8 | 0.10uH-22.0uH | 3.5mΩ-363mΩ | 1.65A-22.0A | 1.2A-13.0A | - 55 °C + 125 °C | FXLA0420.pdf |
| FXLA0518 | 5.2*5.4*1.6 | 0.47uH-10.0uH | 7.7mΩ-155mΩ | 3.0A-15.5A | 2.5A-10.5A | - 55 °C + 125 °C | FXLA0518.pdf | ||
| FXLA0530 | 5.2*5.4*2.8 | 0.10uH-10.0uH | 2.4mΩ-125mΩ | 3.5A-33A | 3.2A-25A | - 55 °C + 125 °C | FXLA0530.pdf | ||
| FXLA0630 | 6.6*7.0*2.8 | 0.10uH-100.0uH | 0.9mΩ-890mΩ | 1.5A-56.0A | 1.0A-32.0A | - 55 °C + 125 °C | FXLA0630.pdf | ||
| FXLA0650 | 6.6*7.0*4.8 | 0.22uH-68uH | 2.4mΩ-330mΩ | 1.8A-32.0A | 1.4A-20.0A | - 55 °C + 125 °C | FXLA0650.pdf | ||
| FXLA1040 | 10*11.5*3.8 | 0.15uH-68uH | 0.50mΩ-195mΩ | 3.0A-75.0A | 2.5A-49.0A | - 55 °C + 125 °C | FXLA1040.pdf | ||
| 羰基一体成型电感 | FXC0420 | 4.4*4.2*1.8 | 0.33uH-10uH | 8.6mΩ-243mΩ | 2.3A-18A | 1.8A-10A | -40℃+125℃ | FXC0420.pdf |
| FXC0530 | 5.7*5.2*2.8 | 0.22uH-22uH | 4.4mΩ-250mΩ | 1.7A-21A | 1.9A-15.5A | -40℃+125℃ | FXC0530.pdf | ||
| FXC0630 | 7.3*6.6*2.8 | 0.1uH-47uH | 1.7mΩ-363mΩ | 2A-60A | 1.75A-32.5A | -40℃+125℃ | FXC0630.pdf | ||
| FXC0650 | 7.3*6.6*4.8 | 0.22uH-33uH | 1.9mΩ-200mΩ | 3.5A-35A | 2A-25A | -40℃+125℃ | FXC0650.pdf | ||
| FXC1040 | 11.0*10.0*3.8 | 0.22uH-47uH | 1.0mΩ-167mΩ | 4.5A-60A | 3A-35A | -40℃+125℃ | FXC1040.pdf | ||
| FXC1350 | 13.5*12.6* 4.7 | 0.33uH-33uH | 0.9mΩ-88mΩ | 8A-80A | 5A-42A | -40℃+125℃ | FXC1350.pdf | ||
| FXC1360 | 13.5*12.6* 5.7 | 0.47uH-150uH | 1.3mΩ-350mΩ | 4A-64A | 3A-38A | -40℃+125℃ | FXC1360.pdf | ||
| FXC1770 | 17.5*17.0*7.0 | 1.0uH-100uH | 2mΩ-118mΩ | 6.5A-70A | 5.3A-52A | -40℃+125℃ | FXC1770.pdf |
磁屏蔽罩
| 产品图片 | 产品类别 | 系列 | 长*宽*高(mm*mm*mm) | 电感值 | 直流电阻 | 饱和电流 | 温升电流 | 使用温度 | 规格书 |
|---|---|---|---|---|---|---|---|---|---|
| 一体成型电感 | FXL0412 | 4.2*4.4*1.0 | 0.15uH-4.7uH | 8mΩ-195mΩ | 2.8A-15.0A | 1.80A-7.50A | - 55 °C + 125 °C | FXL0412系列规格书.pdf |
| FXL0420 | 4.2*4.4*1.8 | 0.10uH-10.0uH | 3.5mΩ-282mΩ | 2.20A-22.0A | 1.60A-13.0A | - 55 °C + 125 °C | FXL0420系列规格书.pdf | ||
| FXL0518 | 5.2*5.4*1.6 | 0.47uH-10.0uH | 7.7mΩ-155mΩ | 3.0A-15.5A | 2.50A-10.5 | - 55 °C + 125 °C | FXL0518系列规格书.pdf | ||
| FXL0530 | 5.2*5.4*2.8 | 0.10uH-10.0uH | 2.4mΩ-125mΩ | 3.50A-33.0A | 3.20A-25.0A | - 55 °C + 125 °C | FXL0530系列规格书.pdf | ||
| FXL0615 | 6.6*7.0*1.3 | 0.47uH-10.0uH | 8.5mΩ-175mΩ | 3.0A-16.0A | 2.0A-10.0A | - 55 °C + 125 °C | FXL0615系列规格书.pdf | ||
| FXL0618 | 6.6*7.0*1.6 | 0.47uH-6.8uH | 8.0mΩ-110mΩ | 4.50A-18.0A | 3.0A-11.5A | - 55 °C + 125 °C | FXL0618系列规格书.pdf | ||
| FXL0624 | 6.6*7.0*2.2 | 0.22uH-15.0uH | 2.5mΩ-160mΩ | 3.30A-34.0A | 2.50A-21.0A | - 55 °C + 125 °C | FXL0624系列规格书.pdf | ||
| FXL0630 | 6.6*7.0*2.8 | 0.22uH-47.0uH | 2.5mΩ-385mΩ | 2.0A-34.0A | 1.50A-24.0A | - 55 °C + 125 °C | FXL0630系列规格书.pdf | ||
| FXL0640 | 6.6*7.0*3.8 | 0.68uH-47uH | 4.8mΩ-320mΩ | 2.5A-19.0A | 1.80A-17.0A | - 55 °C + 125 °C | FXL0640系列规格书.pdf | ||
| FXL0650 | 6.6*7.0*4.8 | 0.47uH-47.0uH | 3.5mΩ-230mΩ | 2.60A-21.00A | 2.00A-20.00A | - 55 °C + 125 °C | FXL0650系列规格书.pdf | ||
| FXL0840 | 8.8*8.2*3.8 | 0.22uH-47.0uH | 1.8mΩ-225mΩ | 2.90A-55.00A | 2.50A-30.00A | - 55 °C + 125 °C | FXL0840系列规格书.pdf | ||
| FXL1040 | 10*11.5*3.8 | 0.15uH-68.0uH | 0.50mΩ-195mΩ | 3.00A-75.0A | 2.50A-45.0A | - 55 °C + 125 °C | FXL1040系列规格书.pdf | ||
| FXL1050 | 10*11.5*4.8 | 0.22uH-100.0uH | 0.8mΩ-290mΩ | 2.80A-65.0A | 2.10A-37.0A | - 55 °C + 125 °C | FXL1050系列规格书.pdf | ||
| FXL1350 | 12.6*13.45*4.8 | 0.22uH-47.0uH | 0.50mΩ-130mΩ | 5.00A-75.0A | 3.00A-50.0A | - 55 °C + 125 °C | FXL1350系列规格书.pdf | ||
| FXL1360 | 12.6*13.45*5.8 | 4.7uH-150.0uH | 8.50mΩ-350mΩ | 2.70A-24.0A | 2.00A-20.0A | - 55 °C + 125 °C | FXL1360系列规格书.pdf | ||
| FXL1365 | 13.45*12.6*6.5 | 4.7uH-100.0uH | 8.50mΩ-170mΩ | 4.00A-24.0A | 3.50A-16.0A | - 55 °C + 125 °C | FXL1365系列规格书.pdf | ||
| FXL1770 | 17.15*17.15*7.0 | 2.2uH-100uH | 2.5mΩ-130mΩ | 5.00A-34A | 3.7A-29A | - 55 °C + 125 °C | FXL1770系列规格书.pdf | ||
| 一体成型电感 | FXLA0420 | 4.2*4.4*1.8 | 0.10uH-22.0uH | 3.5mΩ-363mΩ | 1.65A-22.0A | 1.2A-13.0A | - 55 °C + 125 °C | FXLA0420.pdf |
| FXLA0518 | 5.2*5.4*1.6 | 0.47uH-10.0uH | 7.7mΩ-155mΩ | 3.0A-15.5A | 2.5A-10.5A | - 55 °C + 125 °C | FXLA0518.pdf | ||
| FXLA0530 | 5.2*5.4*2.8 | 0.10uH-10.0uH | 2.4mΩ-125mΩ | 3.5A-33A | 3.2A-25A | - 55 °C + 125 °C | FXLA0530.pdf | ||
| FXLA0630 | 6.6*7.0*2.8 | 0.10uH-100.0uH | 0.9mΩ-890mΩ | 1.5A-56.0A | 1.0A-32.0A | - 55 °C + 125 °C | FXLA0630.pdf | ||
| FXLA0650 | 6.6*7.0*4.8 | 0.22uH-68uH | 2.4mΩ-330mΩ | 1.8A-32.0A | 1.4A-20.0A | - 55 °C + 125 °C | FXLA0650.pdf | ||
| FXLA1040 | 10*11.5*3.8 | 0.15uH-68uH | 0.50mΩ-195mΩ | 3.0A-75.0A | 2.5A-49.0A | - 55 °C + 125 °C | FXLA1040.pdf | ||
| 羰基一体成型电感 | FXC0420 | 4.4*4.2*1.8 | 0.33uH-10uH | 8.6mΩ-243mΩ | 2.3A-18A | 1.8A-10A | -40℃+125℃ | FXC0420.pdf |
| FXC0530 | 5.7*5.2*2.8 | 0.22uH-22uH | 4.4mΩ-250mΩ | 1.7A-21A | 1.9A-15.5A | -40℃+125℃ | FXC0530.pdf | ||
| FXC0630 | 7.3*6.6*2.8 | 0.1uH-47uH | 1.7mΩ-363mΩ | 2A-60A | 1.75A-32.5A | -40℃+125℃ | FXC0630.pdf | ||
| FXC0650 | 7.3*6.6*4.8 | 0.22uH-33uH | 1.9mΩ-200mΩ | 3.5A-35A | 2A-25A | -40℃+125℃ | FXC0650.pdf | ||
| FXC1040 | 11.0*10.0*3.8 | 0.22uH-47uH | 1.0mΩ-167mΩ | 4.5A-60A | 3A-35A | -40℃+125℃ | FXC1040.pdf | ||
| FXC1350 | 13.5*12.6* 4.7 | 0.33uH-33uH | 0.9mΩ-88mΩ | 8A-80A | 5A-42A | -40℃+125℃ | FXC1350.pdf | ||
| FXC1360 | 13.5*12.6* 5.7 | 0.47uH-150uH | 1.3mΩ-350mΩ | 4A-64A | 3A-38A | -40℃+125℃ | FXC1360.pdf | ||
| FXC1770 | 17.5*17.0*7.0 | 1.0uH-100uH | 2mΩ-118mΩ | 6.5A-70A | 5.3A-52A | -40℃+125℃ | FXC1770.pdf |
小型化一体成型
| 产品图片 | 产品类别 | 系列 | 长*宽*高(mm*mm*mm) | 电感值 | 直流电阻 | 饱和电流 | 温升电流 | 使用温度 | 规格书 |
|---|---|---|---|---|---|---|---|---|---|
| 一体成型电感 | FXL0412 | 4.2*4.4*1.0 | 0.15uH-4.7uH | 8mΩ-195mΩ | 2.8A-15.0A | 1.80A-7.50A | - 55 °C + 125 °C | FXL0412系列规格书.pdf |
| FXL0420 | 4.2*4.4*1.8 | 0.10uH-10.0uH | 3.5mΩ-282mΩ | 2.20A-22.0A | 1.60A-13.0A | - 55 °C + 125 °C | FXL0420系列规格书.pdf | ||
| FXL0518 | 5.2*5.4*1.6 | 0.47uH-10.0uH | 7.7mΩ-155mΩ | 3.0A-15.5A | 2.50A-10.5 | - 55 °C + 125 °C | FXL0518系列规格书.pdf | ||
| FXL0530 | 5.2*5.4*2.8 | 0.10uH-10.0uH | 2.4mΩ-125mΩ | 3.50A-33.0A | 3.20A-25.0A | - 55 °C + 125 °C | FXL0530系列规格书.pdf | ||
| FXL0615 | 6.6*7.0*1.3 | 0.47uH-10.0uH | 8.5mΩ-175mΩ | 3.0A-16.0A | 2.0A-10.0A | - 55 °C + 125 °C | FXL0615系列规格书.pdf | ||
| FXL0618 | 6.6*7.0*1.6 | 0.47uH-6.8uH | 8.0mΩ-110mΩ | 4.50A-18.0A | 3.0A-11.5A | - 55 °C + 125 °C | FXL0618系列规格书.pdf | ||
| FXL0624 | 6.6*7.0*2.2 | 0.22uH-15.0uH | 2.5mΩ-160mΩ | 3.30A-34.0A | 2.50A-21.0A | - 55 °C + 125 °C | FXL0624系列规格书.pdf | ||
| FXL0630 | 6.6*7.0*2.8 | 0.22uH-47.0uH | 2.5mΩ-385mΩ | 2.0A-34.0A | 1.50A-24.0A | - 55 °C + 125 °C | FXL0630系列规格书.pdf | ||
| FXL0640 | 6.6*7.0*3.8 | 0.68uH-47uH | 4.8mΩ-320mΩ | 2.5A-19.0A | 1.80A-17.0A | - 55 °C + 125 °C | FXL0640系列规格书.pdf | ||
| FXL0650 | 6.6*7.0*4.8 | 0.47uH-47.0uH | 3.5mΩ-230mΩ | 2.60A-21.00A | 2.00A-20.00A | - 55 °C + 125 °C | FXL0650系列规格书.pdf | ||
| FXL0840 | 8.8*8.2*3.8 | 0.22uH-47.0uH | 1.8mΩ-225mΩ | 2.90A-55.00A | 2.50A-30.00A | - 55 °C + 125 °C | FXL0840系列规格书.pdf | ||
| FXL1040 | 10*11.5*3.8 | 0.15uH-68.0uH | 0.50mΩ-195mΩ | 3.00A-75.0A | 2.50A-45.0A | - 55 °C + 125 °C | FXL1040系列规格书.pdf | ||
| FXL1050 | 10*11.5*4.8 | 0.22uH-100.0uH | 0.8mΩ-290mΩ | 2.80A-65.0A | 2.10A-37.0A | - 55 °C + 125 °C | FXL1050系列规格书.pdf | ||
| FXL1350 | 12.6*13.45*4.8 | 0.22uH-47.0uH | 0.50mΩ-130mΩ | 5.00A-75.0A | 3.00A-50.0A | - 55 °C + 125 °C | FXL1350系列规格书.pdf | ||
| FXL1360 | 12.6*13.45*5.8 | 4.7uH-150.0uH | 8.50mΩ-350mΩ | 2.70A-24.0A | 2.00A-20.0A | - 55 °C + 125 °C | FXL1360系列规格书.pdf | ||
| FXL1365 | 13.45*12.6*6.5 | 4.7uH-100.0uH | 8.50mΩ-170mΩ | 4.00A-24.0A | 3.50A-16.0A | - 55 °C + 125 °C | FXL1365系列规格书.pdf | ||
| FXL1770 | 17.15*17.15*7.0 | 2.2uH-100uH | 2.5mΩ-130mΩ | 5.00A-34A | 3.7A-29A | - 55 °C + 125 °C | FXL1770系列规格书.pdf | ||
| 一体成型电感 | FXLA0420 | 4.2*4.4*1.8 | 0.10uH-22.0uH | 3.5mΩ-363mΩ | 1.65A-22.0A | 1.2A-13.0A | - 55 °C + 125 °C | FXLA0420.pdf |
| FXLA0518 | 5.2*5.4*1.6 | 0.47uH-10.0uH | 7.7mΩ-155mΩ | 3.0A-15.5A | 2.5A-10.5A | - 55 °C + 125 °C | FXLA0518.pdf | ||
| FXLA0530 | 5.2*5.4*2.8 | 0.10uH-10.0uH | 2.4mΩ-125mΩ | 3.5A-33A | 3.2A-25A | - 55 °C + 125 °C | FXLA0530.pdf | ||
| FXLA0630 | 6.6*7.0*2.8 | 0.10uH-100.0uH | 0.9mΩ-890mΩ | 1.5A-56.0A | 1.0A-32.0A | - 55 °C + 125 °C | FXLA0630.pdf | ||
| FXLA0650 | 6.6*7.0*4.8 | 0.22uH-68uH | 2.4mΩ-330mΩ | 1.8A-32.0A | 1.4A-20.0A | - 55 °C + 125 °C | FXLA0650.pdf | ||
| FXLA1040 | 10*11.5*3.8 | 0.15uH-68uH | 0.50mΩ-195mΩ | 3.0A-75.0A | 2.5A-49.0A | - 55 °C + 125 °C | FXLA1040.pdf | ||
| 羰基一体成型电感 | FXC0420 | 4.4*4.2*1.8 | 0.33uH-10uH | 8.6mΩ-243mΩ | 2.3A-18A | 1.8A-10A | -40℃+125℃ | FXC0420.pdf |
| FXC0530 | 5.7*5.2*2.8 | 0.22uH-22uH | 4.4mΩ-250mΩ | 1.7A-21A | 1.9A-15.5A | -40℃+125℃ | FXC0530.pdf | ||
| FXC0630 | 7.3*6.6*2.8 | 0.1uH-47uH | 1.7mΩ-363mΩ | 2A-60A | 1.75A-32.5A | -40℃+125℃ | FXC0630.pdf | ||
| FXC0650 | 7.3*6.6*4.8 | 0.22uH-33uH | 1.9mΩ-200mΩ | 3.5A-35A | 2A-25A | -40℃+125℃ | FXC0650.pdf | ||
| FXC1040 | 11.0*10.0*3.8 | 0.22uH-47uH | 1.0mΩ-167mΩ | 4.5A-60A | 3A-35A | -40℃+125℃ | FXC1040.pdf | ||
| FXC1350 | 13.5*12.6* 4.7 | 0.33uH-33uH | 0.9mΩ-88mΩ | 8A-80A | 5A-42A | -40℃+125℃ | FXC1350.pdf | ||
| FXC1360 | 13.5*12.6* 5.7 | 0.47uH-150uH | 1.3mΩ-350mΩ | 4A-64A | 3A-38A | -40℃+125℃ | FXC1360.pdf | ||
| FXC1770 | 17.5*17.0*7.0 | 1.0uH-100uH | 2mΩ-118mΩ | 6.5A-70A | 5.3A-52A | -40℃+125℃ | FXC1770.pdf |
绕线铁氧体
| 产品图片 | 产品类别 | 系列 | 长*宽*高(mm*mm*mm) | 电感值 | 直流电阻 | 饱和电流 | 温升电流 | 使用温度 | 规格书 |
|---|---|---|---|---|---|---|---|---|---|
| 一体成型电感 | FXL0412 | 4.2*4.4*1.0 | 0.15uH-4.7uH | 8mΩ-195mΩ | 2.8A-15.0A | 1.80A-7.50A | - 55 °C + 125 °C | FXL0412系列规格书.pdf |
| FXL0420 | 4.2*4.4*1.8 | 0.10uH-10.0uH | 3.5mΩ-282mΩ | 2.20A-22.0A | 1.60A-13.0A | - 55 °C + 125 °C | FXL0420系列规格书.pdf | ||
| FXL0518 | 5.2*5.4*1.6 | 0.47uH-10.0uH | 7.7mΩ-155mΩ | 3.0A-15.5A | 2.50A-10.5 | - 55 °C + 125 °C | FXL0518系列规格书.pdf | ||
| FXL0530 | 5.2*5.4*2.8 | 0.10uH-10.0uH | 2.4mΩ-125mΩ | 3.50A-33.0A | 3.20A-25.0A | - 55 °C + 125 °C | FXL0530系列规格书.pdf | ||
| FXL0615 | 6.6*7.0*1.3 | 0.47uH-10.0uH | 8.5mΩ-175mΩ | 3.0A-16.0A | 2.0A-10.0A | - 55 °C + 125 °C | FXL0615系列规格书.pdf | ||
| FXL0618 | 6.6*7.0*1.6 | 0.47uH-6.8uH | 8.0mΩ-110mΩ | 4.50A-18.0A | 3.0A-11.5A | - 55 °C + 125 °C | FXL0618系列规格书.pdf | ||
| FXL0624 | 6.6*7.0*2.2 | 0.22uH-15.0uH | 2.5mΩ-160mΩ | 3.30A-34.0A | 2.50A-21.0A | - 55 °C + 125 °C | FXL0624系列规格书.pdf | ||
| FXL0630 | 6.6*7.0*2.8 | 0.22uH-47.0uH | 2.5mΩ-385mΩ | 2.0A-34.0A | 1.50A-24.0A | - 55 °C + 125 °C | FXL0630系列规格书.pdf | ||
| FXL0640 | 6.6*7.0*3.8 | 0.68uH-47uH | 4.8mΩ-320mΩ | 2.5A-19.0A | 1.80A-17.0A | - 55 °C + 125 °C | FXL0640系列规格书.pdf | ||
| FXL0650 | 6.6*7.0*4.8 | 0.47uH-47.0uH | 3.5mΩ-230mΩ | 2.60A-21.00A | 2.00A-20.00A | - 55 °C + 125 °C | FXL0650系列规格书.pdf | ||
| FXL0840 | 8.8*8.2*3.8 | 0.22uH-47.0uH | 1.8mΩ-225mΩ | 2.90A-55.00A | 2.50A-30.00A | - 55 °C + 125 °C | FXL0840系列规格书.pdf | ||
| FXL1040 | 10*11.5*3.8 | 0.15uH-68.0uH | 0.50mΩ-195mΩ | 3.00A-75.0A | 2.50A-45.0A | - 55 °C + 125 °C | FXL1040系列规格书.pdf | ||
| FXL1050 | 10*11.5*4.8 | 0.22uH-100.0uH | 0.8mΩ-290mΩ | 2.80A-65.0A | 2.10A-37.0A | - 55 °C + 125 °C | FXL1050系列规格书.pdf | ||
| FXL1350 | 12.6*13.45*4.8 | 0.22uH-47.0uH | 0.50mΩ-130mΩ | 5.00A-75.0A | 3.00A-50.0A | - 55 °C + 125 °C | FXL1350系列规格书.pdf | ||
| FXL1360 | 12.6*13.45*5.8 | 4.7uH-150.0uH | 8.50mΩ-350mΩ | 2.70A-24.0A | 2.00A-20.0A | - 55 °C + 125 °C | FXL1360系列规格书.pdf | ||
| FXL1365 | 13.45*12.6*6.5 | 4.7uH-100.0uH | 8.50mΩ-170mΩ | 4.00A-24.0A | 3.50A-16.0A | - 55 °C + 125 °C | FXL1365系列规格书.pdf | ||
| FXL1770 | 17.15*17.15*7.0 | 2.2uH-100uH | 2.5mΩ-130mΩ | 5.00A-34A | 3.7A-29A | - 55 °C + 125 °C | FXL1770系列规格书.pdf | ||
| 一体成型电感 | FXLA0420 | 4.2*4.4*1.8 | 0.10uH-22.0uH | 3.5mΩ-363mΩ | 1.65A-22.0A | 1.2A-13.0A | - 55 °C + 125 °C | FXLA0420.pdf |
| FXLA0518 | 5.2*5.4*1.6 | 0.47uH-10.0uH | 7.7mΩ-155mΩ | 3.0A-15.5A | 2.5A-10.5A | - 55 °C + 125 °C | FXLA0518.pdf | ||
| FXLA0530 | 5.2*5.4*2.8 | 0.10uH-10.0uH | 2.4mΩ-125mΩ | 3.5A-33A | 3.2A-25A | - 55 °C + 125 °C | FXLA0530.pdf | ||
| FXLA0630 | 6.6*7.0*2.8 | 0.10uH-100.0uH | 0.9mΩ-890mΩ | 1.5A-56.0A | 1.0A-32.0A | - 55 °C + 125 °C | FXLA0630.pdf | ||
| FXLA0650 | 6.6*7.0*4.8 | 0.22uH-68uH | 2.4mΩ-330mΩ | 1.8A-32.0A | 1.4A-20.0A | - 55 °C + 125 °C | FXLA0650.pdf | ||
| FXLA1040 | 10*11.5*3.8 | 0.15uH-68uH | 0.50mΩ-195mΩ | 3.0A-75.0A | 2.5A-49.0A | - 55 °C + 125 °C | FXLA1040.pdf | ||
| 羰基一体成型电感 | FXC0420 | 4.4*4.2*1.8 | 0.33uH-10uH | 8.6mΩ-243mΩ | 2.3A-18A | 1.8A-10A | -40℃+125℃ | FXC0420.pdf |
| FXC0530 | 5.7*5.2*2.8 | 0.22uH-22uH | 4.4mΩ-250mΩ | 1.7A-21A | 1.9A-15.5A | -40℃+125℃ | FXC0530.pdf | ||
| FXC0630 | 7.3*6.6*2.8 | 0.1uH-47uH | 1.7mΩ-363mΩ | 2A-60A | 1.75A-32.5A | -40℃+125℃ | FXC0630.pdf | ||
| FXC0650 | 7.3*6.6*4.8 | 0.22uH-33uH | 1.9mΩ-200mΩ | 3.5A-35A | 2A-25A | -40℃+125℃ | FXC0650.pdf | ||
| FXC1040 | 11.0*10.0*3.8 | 0.22uH-47uH | 1.0mΩ-167mΩ | 4.5A-60A | 3A-35A | -40℃+125℃ | FXC1040.pdf | ||
| FXC1350 | 13.5*12.6* 4.7 | 0.33uH-33uH | 0.9mΩ-88mΩ | 8A-80A | 5A-42A | -40℃+125℃ | FXC1350.pdf | ||
| FXC1360 | 13.5*12.6* 5.7 | 0.47uH-150uH | 1.3mΩ-350mΩ | 4A-64A | 3A-38A | -40℃+125℃ | FXC1360.pdf | ||
| FXC1770 | 17.5*17.0*7.0 | 1.0uH-100uH | 2mΩ-118mΩ | 6.5A-70A | 5.3A-52A | -40℃+125℃ | FXC1770.pdf |
一体成型电感
| 产品图片 | 产品类别 | 系列 | 长*宽*高(mm*mm*mm) | 电感值 | 直流电阻 | 饱和电流 | 温升电流 | 使用温度 | 规格书 |
|---|---|---|---|---|---|---|---|---|---|
| 一体成型电感 | FXL0412 | 4.2*4.4*1.0 | 0.15uH-4.7uH | 8mΩ-195mΩ | 2.8A-15.0A | 1.80A-7.50A | - 55 °C + 125 °C | FXL0412系列规格书.pdf |
| FXL0420 | 4.2*4.4*1.8 | 0.10uH-10.0uH | 3.5mΩ-282mΩ | 2.20A-22.0A | 1.60A-13.0A | - 55 °C + 125 °C | FXL0420系列规格书.pdf | ||
| FXL0518 | 5.2*5.4*1.6 | 0.47uH-10.0uH | 7.7mΩ-155mΩ | 3.0A-15.5A | 2.50A-10.5 | - 55 °C + 125 °C | FXL0518系列规格书.pdf | ||
| FXL0530 | 5.2*5.4*2.8 | 0.10uH-10.0uH | 2.4mΩ-125mΩ | 3.50A-33.0A | 3.20A-25.0A | - 55 °C + 125 °C | FXL0530系列规格书.pdf | ||
| FXL0615 | 6.6*7.0*1.3 | 0.47uH-10.0uH | 8.5mΩ-175mΩ | 3.0A-16.0A | 2.0A-10.0A | - 55 °C + 125 °C | FXL0615系列规格书.pdf | ||
| FXL0618 | 6.6*7.0*1.6 | 0.47uH-6.8uH | 8.0mΩ-110mΩ | 4.50A-18.0A | 3.0A-11.5A | - 55 °C + 125 °C | FXL0618系列规格书.pdf | ||
| FXL0624 | 6.6*7.0*2.2 | 0.22uH-15.0uH | 2.5mΩ-160mΩ | 3.30A-34.0A | 2.50A-21.0A | - 55 °C + 125 °C | FXL0624系列规格书.pdf | ||
| FXL0630 | 6.6*7.0*2.8 | 0.22uH-47.0uH | 2.5mΩ-385mΩ | 2.0A-34.0A | 1.50A-24.0A | - 55 °C + 125 °C | FXL0630系列规格书.pdf | ||
| FXL0640 | 6.6*7.0*3.8 | 0.68uH-47uH | 4.8mΩ-320mΩ | 2.5A-19.0A | 1.80A-17.0A | - 55 °C + 125 °C | FXL0640系列规格书.pdf | ||
| FXL0650 | 6.6*7.0*4.8 | 0.47uH-47.0uH | 3.5mΩ-230mΩ | 2.60A-21.00A | 2.00A-20.00A | - 55 °C + 125 °C | FXL0650系列规格书.pdf | ||
| FXL0840 | 8.8*8.2*3.8 | 0.22uH-47.0uH | 1.8mΩ-225mΩ | 2.90A-55.00A | 2.50A-30.00A | - 55 °C + 125 °C | FXL0840系列规格书.pdf | ||
| FXL1040 | 10*11.5*3.8 | 0.15uH-68.0uH | 0.50mΩ-195mΩ | 3.00A-75.0A | 2.50A-45.0A | - 55 °C + 125 °C | FXL1040系列规格书.pdf | ||
| FXL1050 | 10*11.5*4.8 | 0.22uH-100.0uH | 0.8mΩ-290mΩ | 2.80A-65.0A | 2.10A-37.0A | - 55 °C + 125 °C | FXL1050系列规格书.pdf | ||
| FXL1350 | 12.6*13.45*4.8 | 0.22uH-47.0uH | 0.50mΩ-130mΩ | 5.00A-75.0A | 3.00A-50.0A | - 55 °C + 125 °C | FXL1350系列规格书.pdf | ||
| FXL1360 | 12.6*13.45*5.8 | 4.7uH-150.0uH | 8.50mΩ-350mΩ | 2.70A-24.0A | 2.00A-20.0A | - 55 °C + 125 °C | FXL1360系列规格书.pdf | ||
| FXL1365 | 13.45*12.6*6.5 | 4.7uH-100.0uH | 8.50mΩ-170mΩ | 4.00A-24.0A | 3.50A-16.0A | - 55 °C + 125 °C | FXL1365系列规格书.pdf | ||
| FXL1770 | 17.15*17.15*7.0 | 2.2uH-100uH | 2.5mΩ-130mΩ | 5.00A-34A | 3.7A-29A | - 55 °C + 125 °C | FXL1770系列规格书.pdf | ||
| 一体成型电感 | FXLA0420 | 4.2*4.4*1.8 | 0.10uH-22.0uH | 3.5mΩ-363mΩ | 1.65A-22.0A | 1.2A-13.0A | - 55 °C + 125 °C | FXLA0420.pdf |
| FXLA0518 | 5.2*5.4*1.6 | 0.47uH-10.0uH | 7.7mΩ-155mΩ | 3.0A-15.5A | 2.5A-10.5A | - 55 °C + 125 °C | FXLA0518.pdf | ||
| FXLA0530 | 5.2*5.4*2.8 | 0.10uH-10.0uH | 2.4mΩ-125mΩ | 3.5A-33A | 3.2A-25A | - 55 °C + 125 °C | FXLA0530.pdf | ||
| FXLA0630 | 6.6*7.0*2.8 | 0.10uH-100.0uH | 0.9mΩ-890mΩ | 1.5A-56.0A | 1.0A-32.0A | - 55 °C + 125 °C | FXLA0630.pdf | ||
| FXLA0650 | 6.6*7.0*4.8 | 0.22uH-68uH | 2.4mΩ-330mΩ | 1.8A-32.0A | 1.4A-20.0A | - 55 °C + 125 °C | FXLA0650.pdf | ||
| FXLA1040 | 10*11.5*3.8 | 0.15uH-68uH | 0.50mΩ-195mΩ | 3.0A-75.0A | 2.5A-49.0A | - 55 °C + 125 °C | FXLA1040.pdf | ||
| 羰基一体成型电感 | FXC0420 | 4.4*4.2*1.8 | 0.33uH-10uH | 8.6mΩ-243mΩ | 2.3A-18A | 1.8A-10A | -40℃+125℃ | FXC0420.pdf |
| FXC0530 | 5.7*5.2*2.8 | 0.22uH-22uH | 4.4mΩ-250mΩ | 1.7A-21A | 1.9A-15.5A | -40℃+125℃ | FXC0530.pdf | ||
| FXC0630 | 7.3*6.6*2.8 | 0.1uH-47uH | 1.7mΩ-363mΩ | 2A-60A | 1.75A-32.5A | -40℃+125℃ | FXC0630.pdf | ||
| FXC0650 | 7.3*6.6*4.8 | 0.22uH-33uH | 1.9mΩ-200mΩ | 3.5A-35A | 2A-25A | -40℃+125℃ | FXC0650.pdf | ||
| FXC1040 | 11.0*10.0*3.8 | 0.22uH-47uH | 1.0mΩ-167mΩ | 4.5A-60A | 3A-35A | -40℃+125℃ | FXC1040.pdf | ||
| FXC1350 | 13.5*12.6* 4.7 | 0.33uH-33uH | 0.9mΩ-88mΩ | 8A-80A | 5A-42A | -40℃+125℃ | FXC1350.pdf | ||
| FXC1360 | 13.5*12.6* 5.7 | 0.47uH-150uH | 1.3mΩ-350mΩ | 4A-64A | 3A-38A | -40℃+125℃ | FXC1360.pdf | ||
| FXC1770 | 17.5*17.0*7.0 | 1.0uH-100uH | 2mΩ-118mΩ | 6.5A-70A | 5.3A-52A | -40℃+125℃ | FXC1770.pdf |
